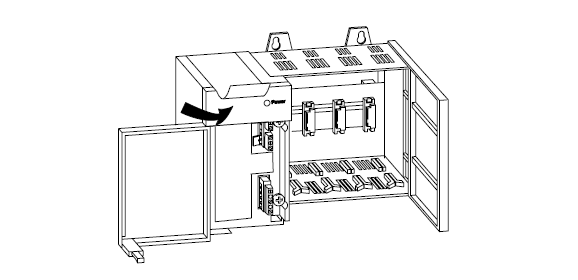

Allen Bradley Modules 1791-16BC 179116BC AB 1791 16BC I/O BLOCK MODULE IN/OUT

Product Description:

All parameters required for any given drive function will be contained within a group, eliminating the need to changegroups to complete a function.To help differentiate parameter names and display text from
other text in this manual, the following conventions will be used – Parameter Names will appear in [Brackets] – Display Text will appear in “Quotes.” Parameter information in this chapter is presented for users who have a Human Interface Module (HIM) installed. For those users without a HIM installed, the
drive can be operated using the factory default values for each parameter or parameter values can be changed through the serial port. FUNCTION INDEX The Function Index shown provides a directory of various drive functions. The Page Number will direct you to the parameters associated with each function.

Related Product Recommendation:

Product's Character:

The Remote I/O communications module allows a SCANport product to look and act like a Remote I/O chassis when connected to a programmable controller. Data contained in the input/output image table is transferred between the programmable controller by the Remote I/O scanner, the same as with any Remote I/O chassis. You control the location of data transferred by setting the rack address and
starting group. You control the amount of data by setting the DIP switches on SW3. Important: Thecommunications module does not scale the data that is transferred. Consequently, all scaling of the data must be done in the controller. Refer to the user manual for your SCANport product for details on
device units. Important: The Remote I/O to SCANport conversion is asynchronous. Data sent to the adapter for transfer to the drive must be maintained until the drive has received data.DIP switches on SW3 determine how the data contained in the programmable controller I/O image table is used in the drive. Figure shows an I/O image table.
