22B-B017N104 22BB017N104 AB AB PowerFlex 40 Series Of Frequency Drives

⇒ Click here for good price 22B-B017N104

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

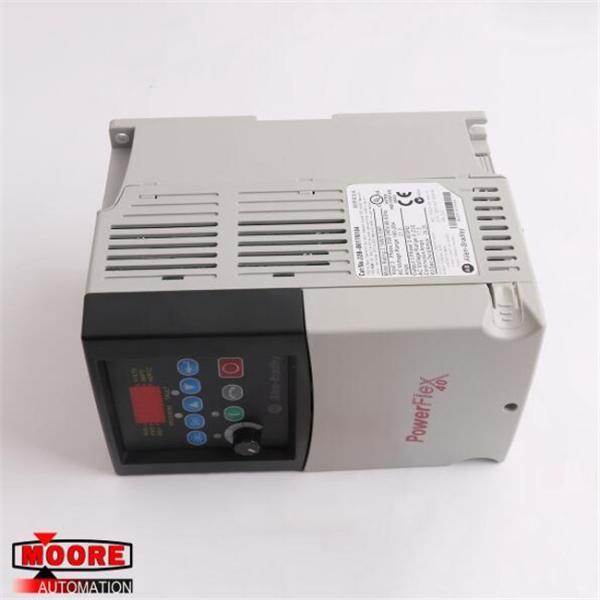

The AB 22B-B017N104 AC Frequency Drive is a member of the PowerFlex 40 series of frequency drives. It runs on 48-63 Hz and supports a wireless communication system. The 22B-B017N104 is engineered to perform on an electrical supply of 240V AC, 3-phase. Moreover, this PowerFlex 40 puts out 17.5A current output and 5HP of power.

Enclosed in an open panel mount as its protective enclosure, the 22B-B017N104 can connect to pocket PCs, laptops, or desktop computers equipped with Bluetooth for communication. It can also connect to any AB product that supports the DSI protocol. The 22B-B017N104 runs even in the absence of a sensor vector control and it functions with integral communication systems such as PROFIBUS DP, LonWorks, DeviceNet, EtherNet/IP, and ControlNet networks. In addition, this type of PowerFlex 40 drive must be surrounded by an ambient temperature of 14-122°F. The 22B-B017N104 has a fixed keypad HIM that works without a filter.

The 22B-B017N104, in addition, uses a fuse with a 30A rating and the 140M-F8E-C25 for motor protection. This type of frequency AC drive releases 150 Watts of energy in external losses and 30 Watts in internal losses. Along with a controller with a 2-16 kHz carrier frequency range, the 22B-B017N104 is part of the standard group of drives. Furthermore, it must be stored in an environment with a relative humidity range of 0-95%, non-condensing.
