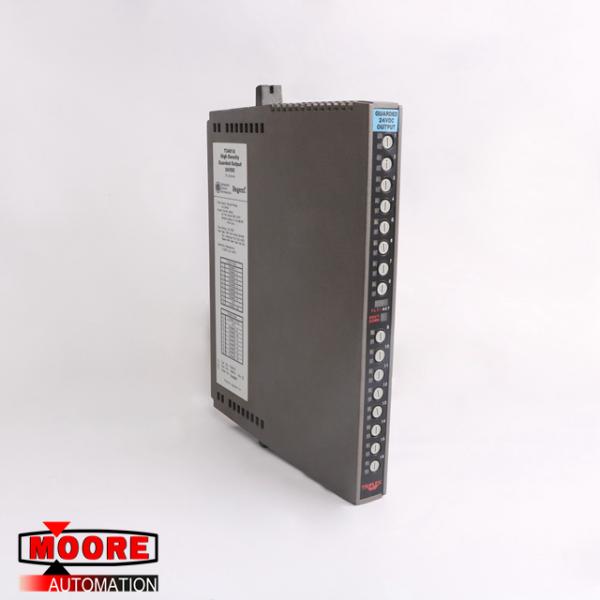

T3481A ICS TRIPLEX GUARDED 24VDC OUTPUT MODULE

⇒ Click here for good price T3481A

Product Details

T3481A Features

Sixteen Guarded outputs (in two groups of eight).

Fault tolerant operation when connected in parallel with another module of the same type.

Hot-replaceable.

Complete, automatic testing of all output circuits.

Automatic line monitoring detects open and short field wiring circuits.

Individual front panel indicators on each module show module fault/active status and shutdown state; additional indicators show output status and load/fuse fault for each point.

Fuses accessible from front panel.

2500 minimum electrical isolation between field and logic circuits.

The processor modules send triplicated write data commands over the I/O Safetybus to the monitored Guarded output module. Onboard the output module the triplicated data are routed to two independent voters which provide voted data to associated field programmable gate arrays (FPGA). Each FPGA independently operates one of the two output control switches. The two output switches are connected in series with the load.

When both output switches are on, current will flow through the output and energize a field load. If either switch is off, current will not flow through the output and the load will be de-energized. This combination of series output switches and independent drive signals produces fail-safe activation of the load. Single failures can only affect one of the output drive signals or switches.
