Product Details

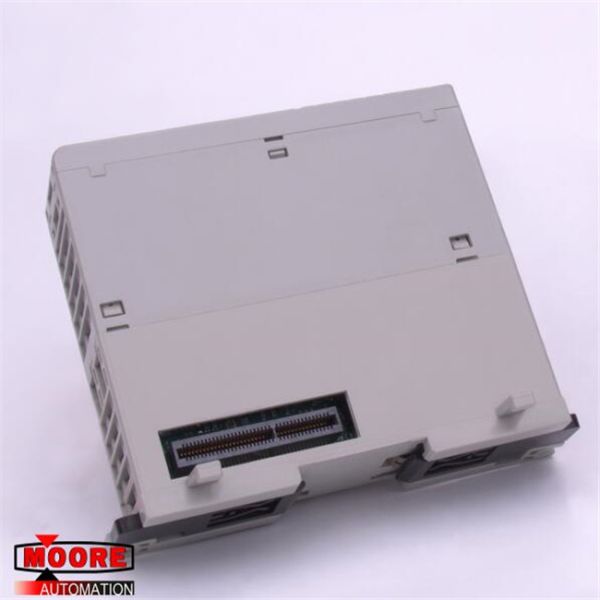

The AB 1768-M04SE module is a CompactLogix 4-Axis SERCOS interface motion module. This SERCOS interface module is used by the AB Kinetix integrated-motion solution systems to accomplish difficult synchronized motion in several axes. This module enables the Kinetix system not only to depend on a PLC for motion control but to integrate the motor, drive, and even some actuators into the system with lower costs per axis of motion. The 1768-M04SE module works with servo drive controllers like the 1768-L43 (4 axes) and the 1768-L45 (8 axes) and servo drives like the 2093 Kinetix 2000, 2094 Kinetix 6000, 2099 Kinetix 7000 high-power, and the 2098 Ultra3000 SERCOS servo drives. This interface motion module covers 4 axes and 2 auxiliary feedback axes, so the 1768-L43 controller needs 1 module to cover 4 axes, and the 1768-L45 needs 2 modules to cover 8 possible axes. The module can operate at 4 Mbps and 8 Mbps SECROS data exchange rates and its cycle time is usually below 0.5 milliseconds (this time never goes over 1 millisecond, even with a large number of axes attached).

The AB 1768-M04SE SERCOS interface module supports the position or velocity drive control modes. It uses a fiber-optic network and the 2090-SCEPxx-0 non-jacketed, polyvinyl chloride 2090-SCNPxx-0 nylon jacket, and the chlorinated polyethylene 2090-SCVPxx-0 standard jacket cables to connect to drives. The module can be mounted onto a DIN rail or to a panel. Its outer dimensions are 132 millimeters x 57 millimeters x 105 millimeters (5.2 inches x 2.23 inches x 4.14 inches). The total weight of the 1768-M04SE SERCOS interface module is 0.2 kilograms.
