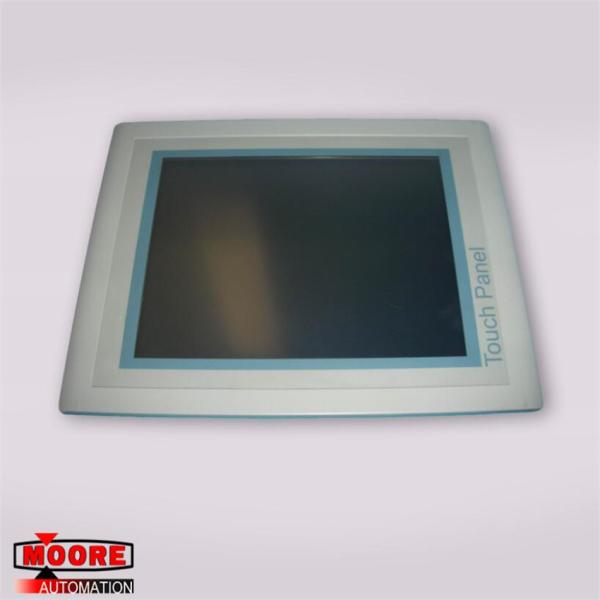

VIPA 62K-JEE0-CB Touch Panel 10.4" TFT color, MPI/PROFIBUS

Product Details

The VIPA Touch Panel allows you to visualize and alter operating states and recent process values of a connected PLC. The Touch Panel is a compact and modular embedded PC based on Windows CE. Besides the extensive Windows CE functions the Touch Panel offers varied communication possibilities. Here the Touch Panel can simply be configured, controlled and remoted.

Windows CE 6.0 Prof.

62K-JEE0-CB: Movicon 11 CE Standard (4096 I/O Bytes)

Processor Xscale, 800MHz

Work memory 128Mbyte

User memory 4GB

3800Mbyte memory for user data

CF-Card II and MMC/SD card slot

RS232, RS422/485, MPI, PROFIBUS DP slave, Ethernet, USB-A and USB-B interfaces

Robust aluminium die casting case

Display resolution 800 x 600 / 600 x 800 (64k colors)

Battery backed clock

Resistive touch screen

Easy mounting via integrated pivoted lever

Protection class IP65 (frontal)

The Touch Panel has got an integrated power supply. The power supply has to be provided with DC 24V (20.4 ... 28.8V). For this you find an according DC 24V slot on the bottom side.

The power supply is protected against inverse polarity and overcurrent. The battery for the clock of the Touch Panel is an accumulator with a suitable charging circuit. This accumulator is maintenance-free and does not need to be exchanged within the life span of the Touch Panel.
