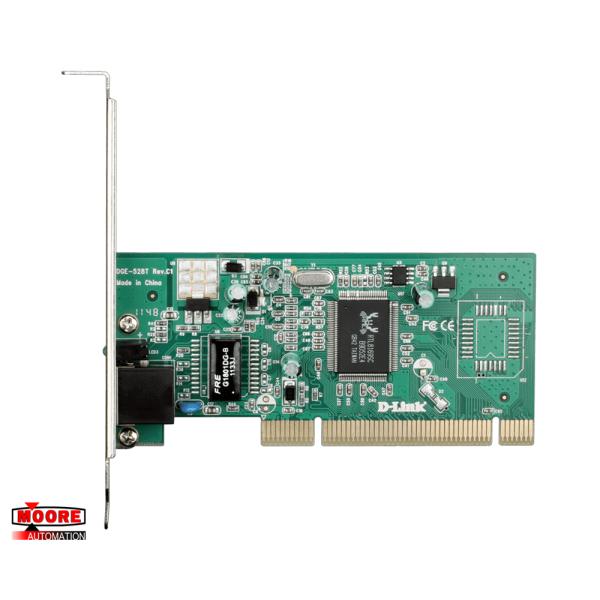

DGE-528T D-LINK Gigabit Ethernet PCI Adapter

Product Details

The D-Link DGE-528T is ideal for the small office or home office environment. After completing the steps in this manual, you will have the ability to share information and resources - such as files and printers - and take full advantage of a “connected” environment for work and play! The DGE-528T comes with drivers for the most popular operating systems and can be integrated into a larger network. However, this manual is designed to help you network two computers running Windows 98SE, ME, 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8, Server 2012 and Windows 10 in a peer-to-peer configuration. The standards compliant DGE-528T gives you the flexibility to expand and customize your Fast Ethernet / Gigabit Ethernet network at will.

Features

Support 10/100Mbps both half and full duplex and 1000 Mbps full-duplex operation.

Gigabit Ethernet: full-duplex at 2000Mbps

Fast Ethernet: full-duplex at 200Mbps.

Auto-negotiation

Support IEEE802.3ab, 802.3T, 802.3u

Support 802.1Q VLAN tagging.

Support 802.3x Flow control.

Support jumbo frame up to 7K bytes

Advanced network management: Wake-On-LAN

Support PCI 2.1, 2.2, 2.3

Support ACPI

Plug & Play installation

Remote Management

The DGE-528T includes additional advanced features such as Advanced Power Management and Wake-on-LAN support. It also supports remote network boot using both PXE and RPL, allowing network administrators to boot the PC from anywhere on the network.

Versatility

The DGE-528T supports all major operating systems, guaranteeing compatibility with existing workstation and desktop environments. Its half-height form factor allows it to be used in low-profile cases for compact PCs. The card also has a diagnostic utility tool, simplifying troubleshooting.
