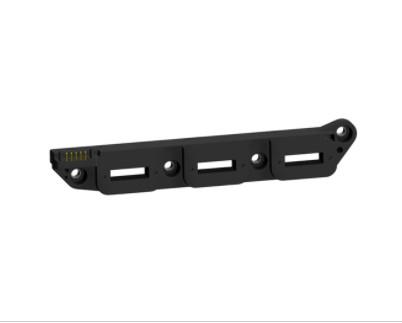

4.75 5 5.25V 2us Response 900A DC Current Transducer
4.75 5 5.25V 2us Response 900A DC Current Transducer
Specifications
MOQ :
100
Payment Terms :
T/T
Delivery Time :
1-12 weeks
Packaging Details :
Original packing
Maximum range :
700A~900A
voltage :
4.75 5 5.25
Load Resistance :
10
Load capacitance :
5
Output internal resistance :
4
Electrical zero offset :
±4
Magnetic zero offset :
±3
Zero output error :
±0.5
Description

NACA.XXXQ1-S6 / VA Current Transducers

Product Details

product manual

NACA XXXQ1-S6/VA series current sensors are suitable for accurate measurement of AC, DC, and pulse current isolation. The primary side and the secondary side are completely insulated during measurement.

Performance requirements
parameter name symbol unit parameter condition
Minimum Typical value Max
Electrical parameters
Maximum range IP A 700A~900A For more details, please contact CRRC
voltage UC V 4.75 5 5.25
Operating temperature TA °C -40 125
Output voltage (analog) Vout V Vout=(Uc/5)·(V0+G·Ip)
Sensitivity G mV/A G=2000/IP @UC=5V
Zero output VO V 2.5
Current consumption IC mA 39 45 @ UC=5V,No load on Vout
Load Resistance RL KΩ 4.7 10
Load capacitance CL nF 5
Output internal resistance ROUT Ω 2 4 8 DC
Performance parameter
Sensitivity error εG % ±1 @TA=25℃,@UC=5V
±2 @-40℃＜TA＜125℃,@UC=5V
Electrical zero offset FLY mV ±4
Magnetic zero offset FROM mV ±3
Zero output error X0 % ±0.5 @TA=25℃,@UC=5V
±0.75 @-40℃＜TA＜125℃,@UC=5V
Proportional error εR % ±0.5
Linearity error εL % ±0.5 of full range
Response time tr μs 2
bandwidth BW kHz 40 @ -3dB
Phase difference ∆φ ° -4 @DC to 1kHz

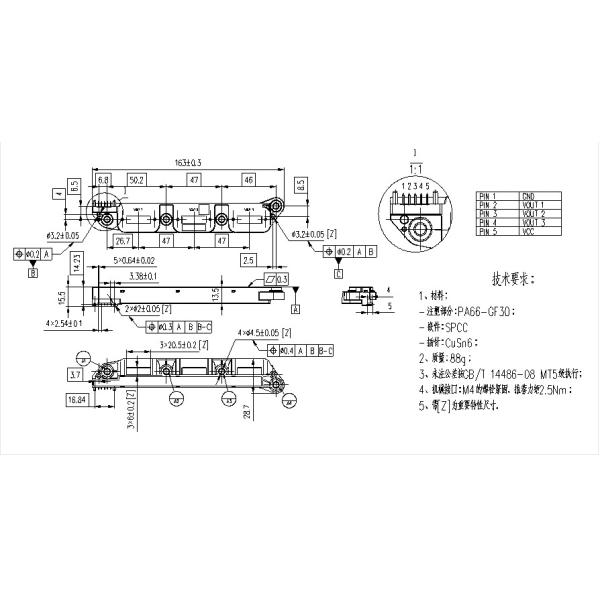

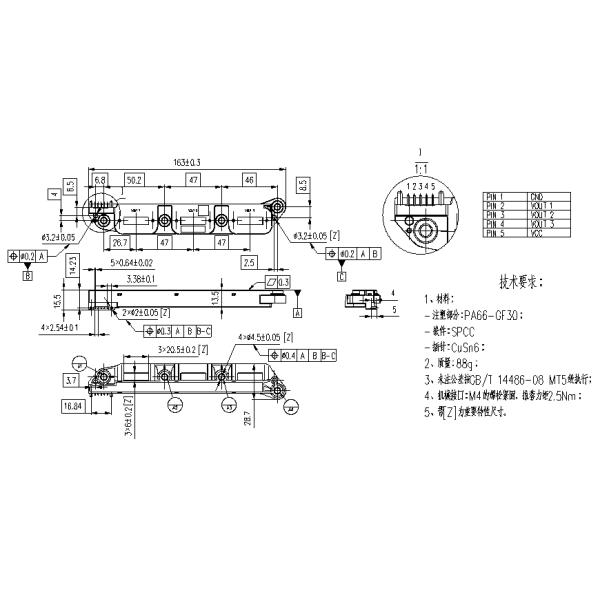

Dimensions
Series size
4.75 5 5.25V 2us Response 900A DC Current Transducer4.75 5 5.25V 2us Response 900A DC Current Transducer

Mechanical parameters Remarks
● Plastic case PA66 -GF 30
● Magnetic core FeSi wound core
● Mass 88g		 ● VOUT>VO when IP flows in the positive direction (see arrow on drawing)
