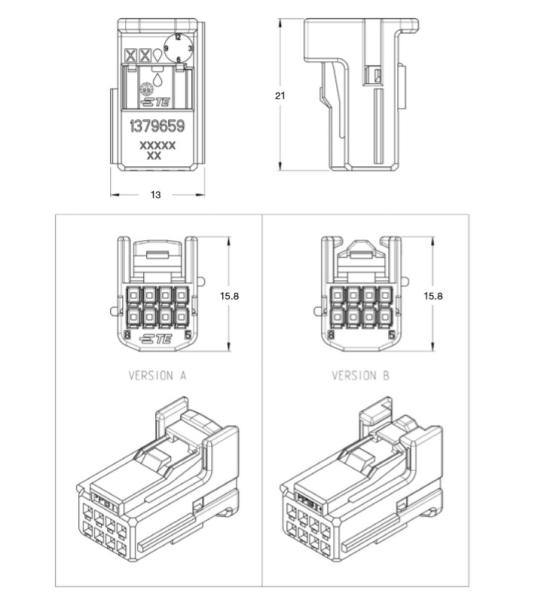

TE Connectivity AMP Connector TH 025 Connector System 8P Receptacle Housings 1379659-1,1379659-2,1379659-3,1379659-5

Description:

Product Features

• TH 025 connectors were designed to provide better connections and performance while securing higher density in limited spaces as required in advanced electronic automotive control systems.
• Another feature is a unique contact design to resist fretting corrosion effectively while employing a lower contact force. As a result, the low insertion force of TH 025 connectors allows a lower connector mating force while offering high density for easy handling.
• This small pitch can help customers to reduce space and weight.
• TH 025 connectors feature a pitch of just 2.2mm, compared to the current standard pitch of 2.54mm.
• TH 025 connector Series have been originally designed in Japan. A European version has been implemented, in order to fulfil the European customer requirements as: • Mechanical coding • Color coding • Reflow leadfree process for headers.
• TH European connectors are available in a full range from 4 to 40 positions.

Application

• Wire-to-Wire, Wire-to-Board and ECU Applications

• Mirror • Multimedia applications • Display screens • Airbag ECU / Safety applications • Switches • Hand free cellphone • Immobilizer • Dashboard • Safety applications • Electrically controlled trunk lid latch • Tyre pressure monitoring system • Body controller management

Specification:

Product Type Features

• Connector Style : Housing for female terminals

• Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

• Sealable : No

• Hybrid Connector : No

• Primary Locking Feature : On the Terminal

• Strain Relief : No

• Row-to-Row Spacing : 3 mm [ .118 in ]

  ---
