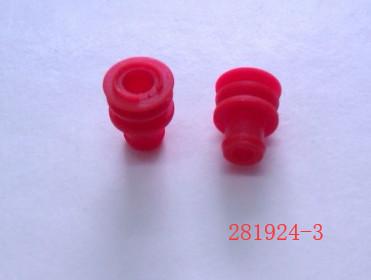

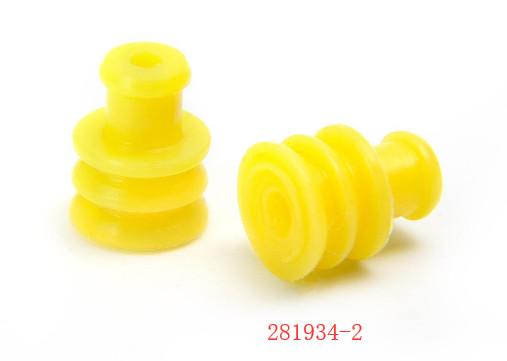

TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
Specifications
Brand Name :
TE Connectivity/AMP
Model Number :
281934-2 281934-3,281934-4
Certification :
Rohs
Place of Origin :
China
MOQ :
50000
Price :
0.01$
Payment Terms :
T/T
Supply Ability :
200000
Delivery Time :
1-12 weeks
Packaging Details :
Original packing
In Stock Qty: :
200000
Stock Lead Time :
4-7 Days
Packing Qty: :
50000
Common Lead Time :
8 weeks
Decription :
TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
Stock price :
reduce as quantity increase
Description

TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4​

Description:

TE Connecitivty has deve l oped the AMP SUPERSEAL 1.5 series con nector family to meet the increasing re quire ments for reliability and water proofness. AMP SUPERSEAL 1.5 series con nector exceed the requirements prescribed by IP 67 accord ing IEC 60529 and DIN 40050-9 stand ards and has its appli cation in the auto motive, agri culture and industrial machinery. For sensor ap pli cation the AMP SUPERSEAL 1.5 series Con nector system is qualified as well.
Advantages
  • Compact system minimizes packaging requirements
  • Sealing reliability proven under harsh conditions
  • Designed for ease of manual harness assembly, engine mounting and under hood environments
Applications
  • Wire-to-Wire (1.5 mm) and ECU applications, under hood or any location where sealing is required
  • Suit able for automotive, truck, bus, or off-road vehicles
RoHS Compliant
Part numbers in this catalog are RoHS Compliant, unless marked otherwise. These products comply with European Union Directive 2002/95/EC as amended 1 January 2006 that restricts the use of lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE in certain electrical and electronic products sold into the EU as of 1 July 2006. Note: For purposes of this Catalog, included within the definition of RoHS Compliant are products that are clearly “Out of Scope” of the RoHS Directive such as hand tools and other non-electrical accessories.

Specification:

AMP Connector 281934-2 281934-3,281934-4
Connector Style Housing for male terminals
Connector System Wire-to-Board,Wire-to-Device, Wire-to-Wire
Number of Positions -
Operating Voltage (VDC) 24
Color Green, Red, Yellow
Cable Exit Angle 180°
Body Material silicon rubber
Mating Tab Width 1.5 mm [ .059 in ]
Centerline (Pitch) 1.2 – 3.3 mm
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Width 6.1 mm 
Height 0.59 mm 
Length 7.8 mm 

Related products:
Female Receptacle 282104-1, 282104-2, 282104-3
Terminal 282109-1, 282109-3, 282404-1, 82404-3,282465-1, 282110-1,282403-1,282465-1,282466-1
Male Plug 282080-1, 282080-2
Wire Seal 281934-2, 281934-3, 281934-4,282081-1

AMP Superseal 1.5MM Series:

TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4

POSITION Female Male
1 PIN-black/gray 282079-1,282079-2, 1-282079-2 282103-1, 282103-2
2 PIN-black/gray 282080-1, 282080-2 282104-1, 282104-2, 282104-3
3 PIN-black/gray 282087-1, 282087-2 282105-1, 282105-2
4 PIN-black/gray 282088-1, 282088-2 282106-1, 282106-2
5 PIN-black/gray 282089-1, 282089-2 282107-1, 282107-2
6 PIN-black/gray 282090-1, 282090-2 282108-1. 282108-2
2 PIN-white 1745022-1
3 PIN-white 1745083-1 1845082-1
4 PIN-orange 1745101-1

TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4TE Connectivity AMP Wire to Wire AMP Superseal 1.5mm Series Wire Seals 281934-2 281934-3,281934-4
