TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2
TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2
TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2
TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2
Specifications
Brand Name :
TE Connectivity/AMP
Model Number :
282103-1, 282103-2
Certification :
Rohs
Place of Origin :
China
MOQ :
1200
Price :
0.45$
Payment Terms :
T/T
Supply Ability :
200000
Delivery Time :
1-12 weeks
Packaging Details :
Original packing
In Stock Qty: :
48000
Stock Lead Time :
4-7 Days
Packing Qty: :
1200
Common Lead Time :
8 weeks
Description :
TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2
Stock price :
reduce as quantity increase
Description

TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2​

Description:

TE Connecitivty has deve l oped the AMP SUPERSEAL 1.5 series con nector family to meet the increasing re quire ments for reliability and water proofness. AMP SUPERSEAL 1.5 series con nector exceed the requirements prescribed by IP 67 accord ing IEC 60529 and DIN 40050-9 stand ards and has its appli cation in the auto motive, agri culture and industrial machinery. For sensor ap pli cation the AMP SUPERSEAL 1.5 series Con nector system is qualified as well.
Advantages
  • Compact system minimizes packaging requirements
  • Sealing reliability proven under harsh conditions
  • Designed for ease of manual harness assembly, engine mounting and under hood environments
Applications
  • Wire-to-Wire (1.5 mm) and ECU applications, under hood or any location where sealing is required
  • Suit able for automotive, truck, bus, or off-road vehicles
RoHS Compliant
Part numbers in this catalog are RoHS Compliant, unless marked otherwise. These products comply with European Union Directive 2002/95/EC as amended 1 January 2006 that restricts the use of lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE in certain electrical and electronic products sold into the EU as of 1 July 2006. Note: For purposes of this Catalog, included within the definition of RoHS Compliant are products that are clearly “Out of Scope” of the RoHS Directive such as hand tools and other non-electrical accessories.

Specification:

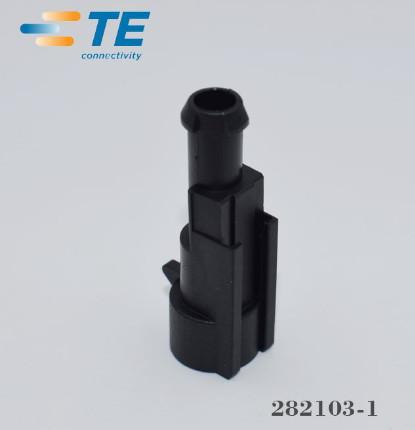

AMP Connector 282103-1
Connector Style Housing for male terminals
Connector System Wire-to-Board,Wire-to-Device, Wire-to-Wire
Number of Positions 1
Operating Voltage (VDC) 24
Color Black
Cable Exit Angle 180°
Body Material PA GF
Mating Tab Width 1.5 mm [ .059 in ]
Centerline (Pitch) 6 mm [ .236 in ]
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Width 9.3 mm [ .366 in ]
Height 32.2 mm [ 1.268 in ]
Length 17.1 mm [ .673 in ]

Related products:
Female Receptacle 282103-1, 282103-2
Terminal 282109-1, 282109-3, 282404-1, 82404-3,282465-1,
Male Plug 282079-1, 282079-2, 282079-3
Wire Seal 281934-2, 281934-3, 281934-4,282081-1

AMP Superseal 1.5MM Series:

TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2

POSITION Female Male
1 PIN-black/gray 282079-1,282079-2, 1-282079-2 282103-1, 282103-2
2 PIN-black/gray 282080-1, 282080-2 282104-1, 282104-2, 282104-3
3 PIN-black/gray 282087-1, 282087-2 282105-1, 282105-2
4 PIN-black/gray 282088-1, 282088-2 282106-1, 282106-2
5 PIN-black/gray 282089-1, 282089-2 282107-1, 282107-2
6 PIN-black/gray 282090-1, 282090-2 282108-1. 282108-2
2 PIN-white 1745022-1
3 PIN-white 1745083-1 1845082-1
4 PIN-orange 1745101-1

TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2

TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2TE Connectivity AMP Connector Wire to Wire Contact AMP Superseal 1.5mm Series Housing 2 Pin Receptale 282103-1,282103-2
