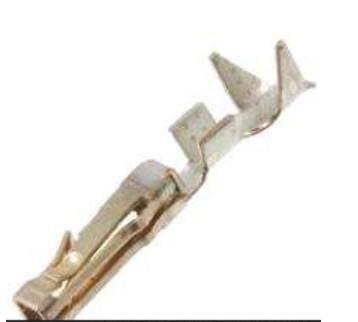

Receptacle Timer automotive wire terminals 962885-5 5-962885-5 Easy Installation
Receptacle Timer automotive wire terminals 962885-5 5-962885-5 Easy Installation
Receptacle Timer automotive wire terminals 962885-5 5-962885-5 Easy Installation
Receptacle Timer automotive wire terminals 962885-5 5-962885-5 Easy Installation
Specifications
Brand Name :
TE Connectivity/AMP
Model Number :
962885-5,5-962885-5
Certification :
Rohs
Place of Origin :
China
MOQ :
440
Price :
1.5$
Payment Terms :
T/T
Supply Ability :
4400000
Delivery Time :
1-12 weeks
Packaging Details :
Original packing
In Stock Qty: :
4400
Stock Lead Time :
4-7 Days
Packing Qty: :
440
Common Lead Time :
8 weeks
Description :
TE Connectivity AMP Connector Receptacle Timer Terminal 962885-5,5-962885-5
Stock Price :
according to the quantity
Description

TE Connectivity AMP Connector Receptacle Timer Terminal 962885-5,5-962885-5

Description:

Wire-to-Wire, Wire-to-Board and ECU Applications

• Mirror • Multimedia applications • Display screens • Airbag ECU / Safety applications • Switches • Hand free cellphone • Immobilizer • Dashboard • Safety applications • Electrically controlled trunk lid latch • Tyre pressure monitoring system • Body controller management

Specification:

Product Type Features

  • Sealable : No

  • Primary Locking Feature : Locking Lance

  • Wire Type : Copper

  • Receptacle Style : 180°

Contact Features

  • Crimp Type : F-Crimp

  • Typical Current Rating (A): 7.5

  • Terminal & Splice Style : Receptacle

  • Mating Tab Width : .63 mm [ .025 in ]

  • Mating Tab Thickness : .63 mm [ .025 in ]

  • Interface Plating : Tin (Sn)

  • Contact Termination Area Plating Material : Tin (Sn)

Termination Features

  • Termination Method : Crimp

Dimensions

  • Wire Size (AWG): 24 – 20

  • Wire Size (mm²): .2 – .6

  • Wire Size Search (AWG): 20, 21, 22, 23, 24

  • Wire Size Search (mm²): .2, .22, .25, .3, .35, .4, .5, .6

  • Wire Insulation Diameter : 1.9 mm [ .075 in ]

Usage Conditions

  • Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

Packaging Features

  • Packaging Quantity : 11000

  • Packaging Method : Reel

Other

  • Terminal Transmits : 0 – 24 A (Low Power)
