A30 Series Surface Mount Resettable Fuse 9a 30v Current Overload Protection
A30 Series Surface Mount Resettable Fuse 9a 30v Current Overload Protection
Specifications
Brand Name :
Julun
Model Number :
PPTC
Certification :
CE/UL/VDE/KC/ROHS
Place of Origin :
China
MOQ :
100 / Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T,
Supply Ability :
20000/Piece/Weekly
Delivery Time :
7~10 Working days
Packaging Details :
Standard carton
Usage :
Resettable
Breaking Capacity :
Low
Safety Standards :
CSA
Rated Current :
0.5A-9A
Volts :
30v
Material :
Pollymer
Description

A30 Series Surface Mount Resettable Fuse 9a 30v Current Overload Protection

A30.pdf

A30 Series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred.

Cured, flame retardant epoxy polymer insulating
material meets UL 94V-0 requirements
Fast time-to-trip
RoHS compliant, Lead-Free and Halogen-Free*

Performance Specification

Model 　
V max　		 　
Imax　		 　
I hold		 　
I trip		 　
Pd		 Maximum Time To Trip Resistance
Current Time Rimin Rimax R1max
(Vdc) (A) (A) (A) (W) (A) (Sec) (Ω) (Ω) (Ω)
A30-030 30 40 0.30 0.60 0.44 8.00 0.30 0.300 1.100 1.600
A30-040 30 40 0.40 0.80 0.45 8.00 0.30 0.200 0.900 1.300
A30-050 30 40 0.50 1.00 0.5 2.50 4.10 0.250 0.600 1.200
A30-065 30 40 0.65 1.30 0.47 8.00 0.40 0.200 0.500 0.800
A30-070
30
40
0.70
0.14
0.6
3.50
4.30
0.140
0.220
0.350
A30-075
30
40
0.75
1.50
0.6
3.75
5.20
0.120
0.370
0.420
A30-090
30
40
0.90
1.80
0.6
4.50
5.90
0.070
0.220
0.300
A30-110
30
40
1.10
2.20
0.7
5.50
6.60
0.050
0.200
0.260
A30-135
30
40
1.35
 2.70
0.8
6.75
7.30
0.040
0.160
0.220
A30-160
30
40
1.60
3.20
0.9
8.00
8.00
0.030
0.140
0.180
A30-185 30 40 1.85 3.70 1.0 9.25 8.70 0.030 0.120 0.150
A30-250 30 40 2.50 5.00 1.2 12.5 10.3 0.020 0.080 0.100
A30-300 30 40 3.00 6.00 2.0 15.0 10.8 0.020 0.070 0.100
A30-400 30 40 4.00
8.00
 2.5 20.0 12.7 0.010 0.060 0.090
A30-500 30 40 5.00 10.00 3.0 25.0 14.5 0.010 0.050 0.080
A30-600 30 40 6.00 12.00 3.5 30.0 16.0 0.005 0.040 0.060
A30-700 30 40 7.00 14.00 3.8 35.0 17.5 0.005 0.030 0.050
A30-800 30 40
8.00
 16.00 4.0 40.0 18.8 0.005 0.025 0.180
A30-900 30 40 9.00 18.00 4.2 40.0 20.0 0.005 0.020 0.025

I hold = Hold Current. Maximum current device will not trip in 25°C still air.
I trip = Trip Current. Minimum current at which the device will always trip in 25°C still air.
V max = Maximum operating voltage device can withstand without damage at rated current (Imax).
I max = Maximum fault current device can withstand without damage at rated voltage (V max).
Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage.
Ri min/max = Minimum/Maximum device resistance prior to tripping at 25°C.
R1max = Maximum device resistance is measured one hour post reflow.
CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame.

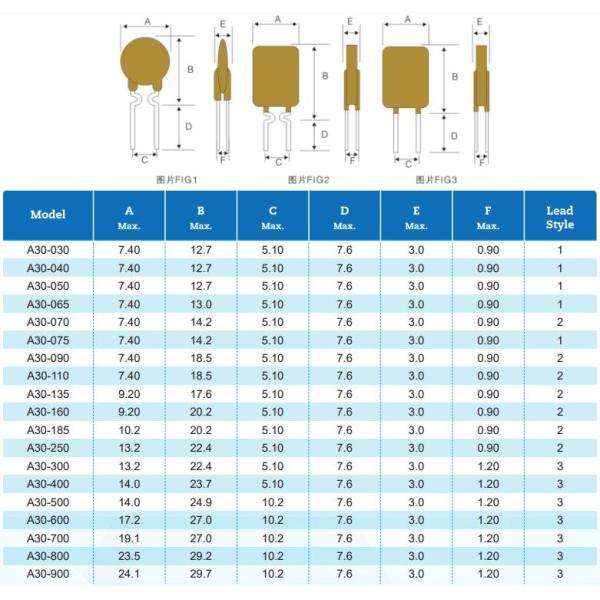

Physical Dimensions(mm.)

A30 Series Surface Mount Resettable Fuse 9a 30v Current Overload Protection

FAQ


Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, for container order, we have OEM packing service, you need to inform us your logo or company information in details. For bulk cargo, we will use neutral packing.
Q: What adventages do you have?
A: Fast delivery and good service.
Stable quality with competitive price.
Strict management system.


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
