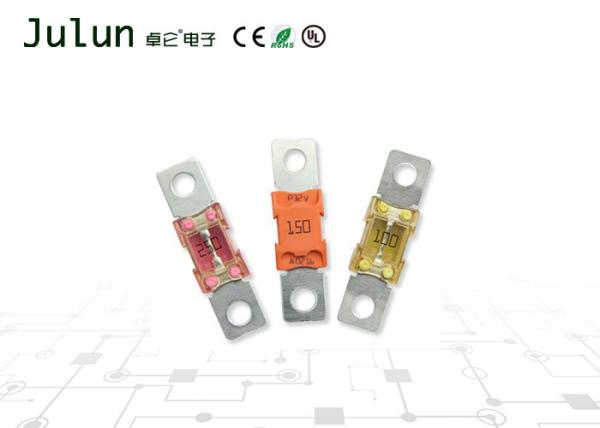

Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car
Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car
Specifications
Brand Name :
Julun
Model Number :
BF2
Certification :
CE/UL/VDE/KC/ROHS
Place of Origin :
CHINA
MOQ :
100 / Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T,
Supply Ability :
10000/Piece/Weekly
Delivery Time :
7~10 Working days
Packaging Details :
Standard carton
Operating Temperature :
-40 to 125 degrees C
Housing Material :
PET-GF30
Clear Housing Material :
PES
Mounting Torque :
12.0 Nm +/- 1Nm
Description

Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car

BF2_32V_Datasheet.pdf

Specifications

Housing Material: PET-GF30
Clear Housing Material: PES
Terminal: Copper alloy, gal. Sn
2 x M8 bolts, Distance 51 mm
Mounting Torque: 12.0 Nm +/- 1Nm
Breaking Capacity: 100 A - 300 A: 2.000 A, 32V, DC
400 A - 500 A: 1.500 A, 32V, DC
Complies with: ISO 8820-5, UL 248 Special Purpose Fuses

Time-Current Characteristics

% of Rating Opening Time Min / Max (s)
100A - 250A 300A - 500A
75 – / – 4 h / –
100 4 h / – – / –
135 120 s / 1,800 s – / –
200 1 s / 15 s 1 s / 15 s
350 0.300 s / 5 s 0.500 s / 5 s
600 0.100 s / 1 s 0.100 s / 1 s

Ratings

Part Number

Current Rating

(A)

Typ. Voltage Drop

(mV)

Cold Resistance

(mΩ)

I2t

(A2 s)
M8 Holes M6 Holes
153.5395.610 153.7011.610 100 110 0.70 46,800
153.5395.612 153.7011.612 125 110 0.52 118,100
153.5395.615 153.7011.615 150 110 0.42 113,400
153.5395.617 153.7011.617 175 110 0.36 154,400
153.5395.620 153.7011.620 200 110 0.34 288,000
153.5395.622 153.7011.622 225 110 0.29 236,000
153.5395.625 153.7011.625 250 110 0.25 292,500
153.5395.630 153.7011.630 300 110 0.21 486,000
153.5395.640 153.7011.640 400 110 0.13 964,000
153.5395.650 153.7011.650 500 110 0.12 1,449,000

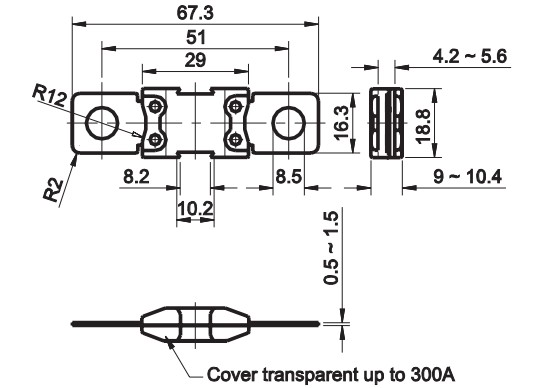

Dimensions

Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car

FAQ


Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately

but please send the broken product to us .you don't have to worry about the carriage charge we will

pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most

competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details

drawings so that we can provide us our professional & best service to you.
