Ceramic 3- Electrode Gas Tube Surge Arrester Transient Voltage Suppressor
Ceramic 3- Electrode Gas Tube Surge Arrester Transient Voltage Suppressor
Specifications
Brand Name :
Julun
Model Number :
ZM72810
Certification :
CE/UL/VDE/KC/ROHS
Place of Origin :
China
MOQ :
100 / Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T,
Supply Ability :
10000/Piece/Weekly
Delivery Time :
7~10 Working days
Packaging Details :
Standard carton
Type :
3-Electrode
Material :
Ceramic
Size :
Ф7.2/8×10mm
Impulse Discharge Current :
10KA / 10A×2
Description

Ceramic 3-electrode gas discharge tude arrester transient voltage suppressor

Electrical Specifications

Type(have no lead wire)
Ф7.2/8×10mm left		 ZM72810
3R -75		 ZM72810
3R -90		 ZM72810
3R-150		 ZM72810
3R -230		 ZM72810
3R-250		 ZM72810
3R -350		 ZM72810
3R -470		 ZM72810
3R -600
Type(crooked lead wire
expiration protects)
Ф7.2/8×10mm center		 ZM72810
3R -75BF		 ZM72810
3R -90BF		 ZM72810
3R -150BF		 ZM72810
3R -230BF		 ZM72810
3R -250BF		 ZM72810
3R -350BF		 ZM72810
3R -470BF		 ZM72810
3R -600BF
Type(crooked lead wire)
Ф7.2/8×10mm right		 ZM72810
3R -75B		 ZM72810
3R -90B		 ZM72810
3R -150B		 ZM72810
3R -230B		 ZM72810
3R -250B		 ZM72810
3R -350B		 ZM72810
3R -470B		 ZM72810
3R -600B
Nominal DC Spark-over voltage
100V/s(V)		 75 90 150 230 250 350 470 600
Deviation of VS (V)% ±25 ±20 ±20 ±20 ±20 ±20 ±20 ±20
Impulse spark-over voltage
1KV/μs(V)		 ≤600 ≤600 ≤600 ≤700 ≤750 ≤850 ≤1100 ≤1300
Impulse discharge current 10/350μs(KA)1times 2×2 2×2 2×2 1.5×2 1.5×2 1×2 1×2 1×2
Impulse discharge current
8/20μs(KA) 10times		 10×2 10×2 10×2 10×2 10×2 10×2 10×2 10×2
Impulse discharge current
10/1000μs(A/times)		 100/300×2 100/300×2 100/300×2 100/300×2 100/300×2 100/300×2 100/300×2 100/300×2
Alternating discharge current
50Hz 10times(A)		 10×2 10×2 10×2 10×2 10×2 10×2 10×2 10×2
Insulation resistance (Ω) ≥108 ≥108 >109 >109 >109 >109 >109 >109
Capacitance(1 MHz) pF ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5
Transverse voltage duration(ns) ≤200 ≤200 ≤200 ≤200 ≤200 ≤200 ≤200 ≤200

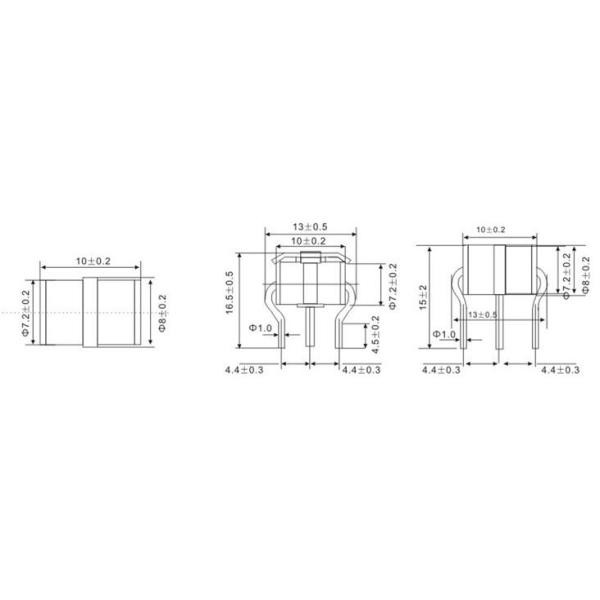

Dimensions

Ceramic 3- Electrode Gas Tube Surge Arrester Transient Voltage Suppressor

FAQ


1.Are you a factory or trading company?
We are a factory founded in 2009 and have over 9 years’ OEM and international trading experience

2.What’s your main product?
Our main products are fuse series, resistance series, capacitance series, fuse pedestal series, sensor series

3.Any certification of your company or product?
We have ISO 9001-2008 ,CE(LVD), RoHS, TUV,cURus,VDE,CQC,PSE,KC Certificates and Test Report for these certificate.

4.Which countries have your product been exported to ?
We have exported our product to over 20 countries , such as Russia , India ,Thailand, Indonesia, Malaysia, Tunisia, Brazil ,Iran, U.A.E ,Mexico, Colombia, Venezuela , Argentina etc.

5.Which international exhibition do you usually go to?
China Import and Export Fair (Canton Fair) ELEKTRO , Russia / FIEE ELéTRICA ,Brazil.

6.Can I visit your factory?
We have over 5000 square meters of workspace and sincerely welcome your business visit.

7.Do you accept OEM or ODM?
Of course.

8.How’ your production capacity? How long is the lead time ?
Monthly output 50,000 piece . It usually take us 20-30 days to finish the goods.

9.What’s your main payment term?
T/T ,LC ,D/P.

10.Any quality guarantee or after-sales service?
If any quality complaint , we will give out solution within 5 days.

11.Can sample fee be returned back to me ?
Sample amount can be deducted from your bulk order payment when order quantity is over 1000 pieces at the first time.

12.How many days it takes to finish the samples?
Usually 2-5 work days .


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
