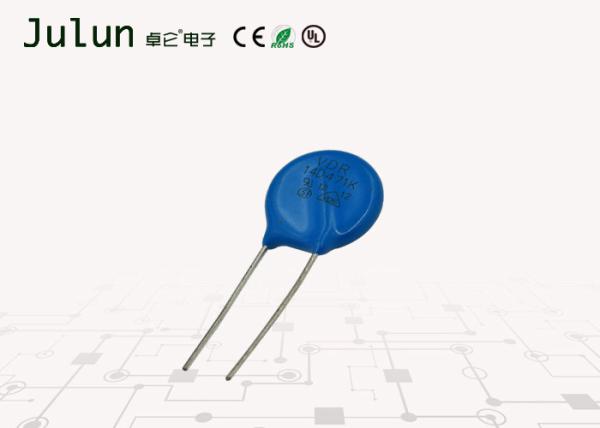

Mov Metal Oxide Varistor Surge Protection 14D Series 10% Resistance Tolerance
Mov Metal Oxide Varistor Surge Protection 14D Series 10% Resistance Tolerance
Specifications
MOQ :
100 / Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T,
Supply Ability :
10000/Piece/Weekly
Delivery Time :
7~10 Working days
Packaging Details :
Standard carton
Brand Name :
Julun
Certification :
CE/UL/VDE/KC/ROHS
Model Number :
14D
Place of Origin :
CHINA
Type :
Fixed Resistor
Technology :
Carbon Film
Resistance Tolerance :
10%
Description

14D Series High Energy Metal Oxide Varistor for Transient Voltage Surge Suppressor

Specifications

Model specification Varistor voltage Maximum voltage Limiting voltage Energy tolerance Through flow Static power Capacitance reference
8/20μS J 8/20μS
V1mA ACrms DC Vc Ip 10/1000 2ms 1 shocks 2 shocks (W) 1kHz
(v) (v) (v) (v) (A) μS (kA) (kA) pF
HEL-14D182K 1620-1980 1000 1465 2970 50 510 360 6.5 5 0.6 120
HEL-14D112K 990-1210 680 895 1815 50 310 220 6.5 5 0.6 150
HEL-14D102K 900-1100 625 825 1650 50 280 200 6.5 5 0.6 180
HEL-14D951K 855-1045 575 765 1580 50 270 190 6.5 5 0.6 190
HEL-14D911K 819-1001 550 745 1500 50 255 180 6.5 5 0.6 200
HEL-14D821K 738-902 510 670 1355 50 135 165 6.5 5 0.6 230
HEL-14D781K 702-858 485 640 1290 50 225 160 6.5 5 0.6 230
HEL-14D751K 657-825 460 615 1240 50 210 150 6.5 5 0.6 260
HEL-14D681K 612-748 420 560 1120 50 200 145 6.5 5 0.6 290
HEL-14D621K 558-682 385 505 1025 50 195 140 6.5 5 0.6 320
HEL-14D561K 504-616 350 460 920 50 192 138 6.5 5 0.6 360
HEL-14D511K 459-561 320 418 842 50 190 136 6.5 5 0.6 390
HEL-14D471K 423-517 300 385 775 50 175 125 6.5 5 0.6 420
HEL-14D431K 387-473 275 350 710 50 155 110 6.5 5 0.6 440
HEL-14D391K 351-429 250 320 650 50 140 100 6.5 5 0.6 480
HEL-14D361K 324-396 230 300 595 50 130 90 6.5 5 0.6 500
HEL-14D331K 297-363 210 275 550 50 115 80 6.5 5 0.6 550
HEL-14D301K 270-330 195 250 505 50 108 78 6.5 5 0.6 600
HEL-14D271K 243-297 175 225 455 50 99 70 6.5 5 0.6 650
HEL-14D241K 216-264 150 200 395 50 84 60 6.5 5 0.6 710
HEL-14D221K 198-242 140 180 360 50 78 55 6.5 5 0.6 840
HEL-14D201K 185-225 130 170 340 50 70 50 6.5 5 0.6 970
HEL-14D181K 162-198 115 150 300 50 65 42 6.5 5 0.6 1,030
HEL-14D151K 135-165 95 125 250 50 53 38 6.5 5 0.6 3,000
HEL-14D121K 108-132 75 100 200 50 42 30 6.5 5 0.6 3,100
HEL-14D101K 90-110 60 85 165 50 35 25 6.5 5 0.6 3,400
HEL-14D820K 74-90 50 65 135 50 28 20 6.5 5 0.6 3,900
HEL-14D680K 61-75 40 56 135 10 20 16 2 1 0.1 4,700
HEL-14D560K 50-62 35 45 110 10 16 13 2 1 0.1 5,600
HEL-14D470K 42-52 30 38 93 10 14 11 2 1 0.1 6,500
HEL-14D390K 35-43 25 31 77 10 11 9.4 2 1 0.1 7,500
HEL-14D330K 30-36 20 26 65 10 9.5 7.9 2 1 0.1 8,500
HEL-14D270K 24-30 17 22 53 10 7.8 6.5 2 1 0.1 10,000
HEL-14D220K 20-24 14 18 43 10 6.3 5.3 2 1 0.1 15,000
HEL-14D180K 15.5-21 11 14 38 10 5.2 3.3 2 1 0.1 18,000

Dimensions

Mov Metal Oxide Varistor Surge Protection 14D Series 10% Resistance Tolerance

Dmax 17
Hmax 19
Lmin 25
A±1 7.5
ø±0.05 0.77

180K--680K 5 621K--681K 7
820K--201K 5 751K--821K 7.5
221K--331K 5.5 102K--122K 8
361K--471K 6 142K--162K 10
511K--561K 6.5 182K 12

FAQ


1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the very beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
