Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse
Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse
Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse
Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse
Specifications
MOQ :
100 / Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T,
Supply Ability :
10000/Piece/Weekly
Delivery Time :
7~10 Working days
Packaging Details :
Standard carton
Brand Name :
Julun
Place of Origin :
CHINA
Certification :
CE/UL/VDE/KC/ROHS
Model Number :
HV150
Material :
Ceramics
Rated Current :
5~50A
Rated Breaking Capacity :
500Vdc/10000A
Rated voltage :
500VDC
Dimensions :
13x66mm
Description

Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse

EV_Fuse_HV150-XXYY_RevE.pdf

FEATURES

General purpose fuse for EV/HEV

Stud-mount, optional for other installtion

500Vdc ideal for EV or HEV application

Excellent DC performance

Special designed fuse base for vehicle situation

Electrical Characteristics
% of Ampere Rating (A) Operating Time (Unit: s)
Min Max
200% 1 300
300% 0.2 30
500% 0.1 10

ELECTRICAL SPECIFICATIONS

Ordering P/N Rated Current (A) rated Voltage/ Interrupting rating
HV150-5YY 5 500Vdc/10000A
HV150-6YY 6
HV150-8YY 8
HV150-10YY 10
HV150-15YY 15
HV150-16YY 16
HV150-20YY 20
HV150-25YY 25
HV150-30YY 30
HV150-32YY 32
HV150-35YY 35 500Vdc/6000A
HV150-40YY 40
HV150-50YY 50 500Vdc/10000A

Temperature Rise: <=50K with 70% of rated current

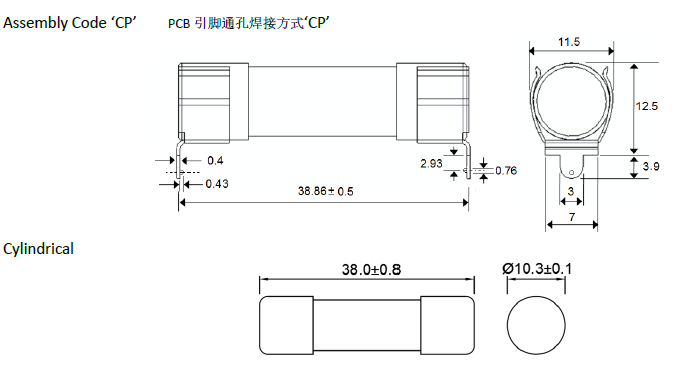

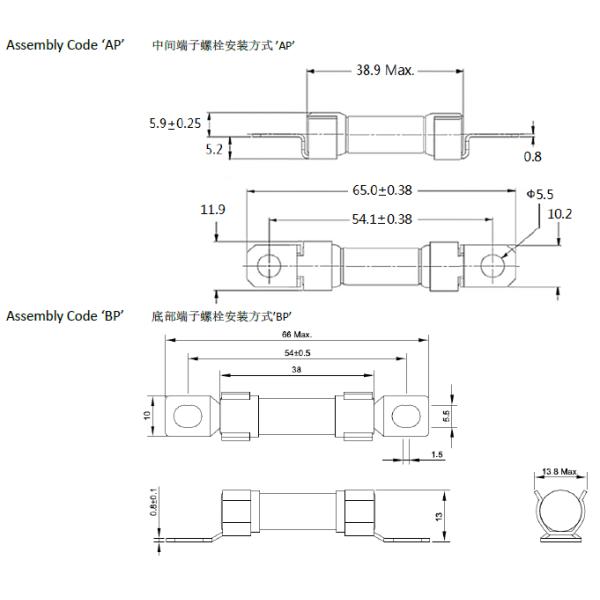

DIMENSIONS (mm)

Assembly code

‘AP’ means center terminal bolt installation

‘BP’ means bottom terminal bolt installation

‘CP’ means PCB through hole installation

No suffix mean cylindrical without terminals

Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle FuseCeramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse

FAQ


Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately but please send the broken product to us .you don't have to worry about the carriage charge we will pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
