20D 180K 18V 20mm MOV Metal Oxide Varistor
20D 180K 18V 20mm MOV Metal Oxide Varistor
20D 180K 18V 20mm MOV Metal Oxide Varistor
20D 180K 18V 20mm MOV Metal Oxide Varistor
Specifications
Brand Name :
Julun
Model Number :
25D
Certification :
CE/UL/VDE/KC/ROHS
Place of Origin :
CHINA
MOQ :
100 / Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T,
Supply Ability :
10000/Piece/Weekly
Delivery Time :
7~10 Working days
Packaging Details :
Standard carton
Type :
Fixed Resistor
Product thickness :
11 ~ 18mm
Varistor voltage :
200 ~ 1800
Joule :
170 ~ 1150
Resistance :
18V-1800V, 47V
Rated Power :
0.125W 1/8W
Description

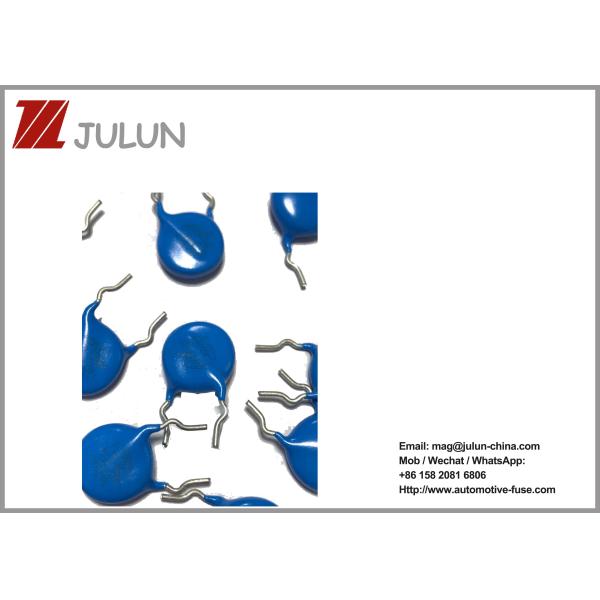

Metal Oxide Varistors 20D180K 18V 20mm MOV Zinc Oxide Varistors Radial Lead

Features and uses

Varistor is a semiconductor ceramic element made of zinc oxide as the main material. Its resistance value varies with the application of electricity.
The pressure changes linearly. It has the characteristics of small size and large flow. Protection of main semiconductor devices, surge overvoltage protection for household appliances, overvoltage protection for communications and measuring instruments
Protect.

Ratings and characteristics

The rated value of the varistor is listed in the technical parameter list. Note: The capacitance listed in the table is a reference value, not an assessment value.
Other characteristics Leakage current: at +25°C: ≤20μA (V1.0mA Of 83%); climate category: 40/125/21

TYPE DESCRIPTION
Categories Circuit Protection
TVS - Varistors, MOVs
Manufacturer Part Number B72220S0300K101
Series StandarD
Packaging Bulk
Part Status Active
Maximum AC Volts 30V
Maximum DC Volts 38V
Varistor Voltage (Min) 42.3V
Varistor Voltage (Typ) 47V
Varistor Voltage (Max) 51.7V
Current - Surge 2kA
Energy 26J
Number of Circuits 1
Capacitance @ Frequency 9350pF @ 1kHz
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 20mm
Other Names 495-2405
B72220S 300K101
B72220S300K101
B72220S300K101V57
S20K30
S20K30-ND
Standard Package 250
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) Not Applicable
Description VARISTOR 47V 2KA DISC 20MM
Detailed Description 47V 2kA Varistor 1 Circuit Through Hole Disc 20mm



20D 180K 18V 20mm MOV Metal Oxide Varistor
