Specifications
Brand Name :
Retek
Model Number :
D3540PLG
Certification :
CCC,UL,Reach, RoHS, CE
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20000PCS/Month
Delivery Time :
14days
Packaging Details :
150PCS/Carton
Optional Voltage :
DC 12V/24V
Torque Range :
0.3Nm~2.0Nm
Power :
1.2W~4.2W
Pricing :
$5.00~$12.00
Original :
China
Description

D3540PLG: DC Gearmotors for Automatic Doors,Automobiles,Actuators and Automated Devices.

Typical Application:

Gearmotor, linear actuator,power tool,automated devices

Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.

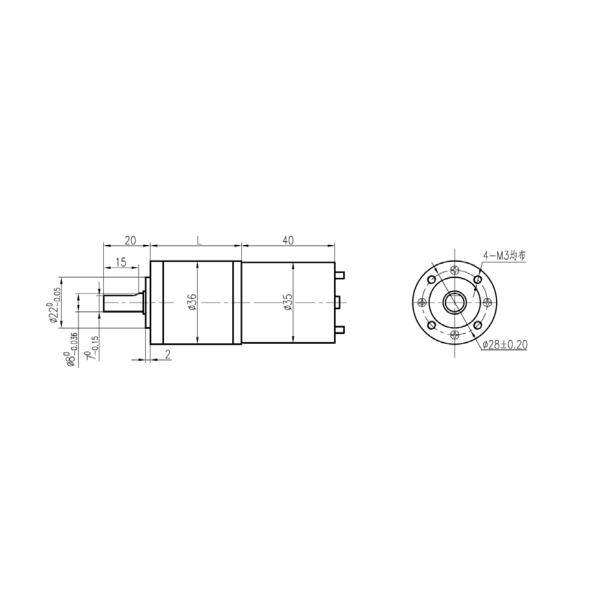

Drawing:

D3540PLG DC Gear Motor For Automatic Doors , Small 12v Gear Motor

Motor Technical Data:

TYPE Rated
voltage
VDC		 No-load
speed
r/min		 No-load
current
mA		 Rated
speed
r/min		 Rated
torque
m.Nm		 Output
power
W		 Rated
current
mA		 Stall
torque
m.Nm		 Stall
current
A
D3540-1230 12 3000 90 2300 9 2.1 400 38.5 0.8
D3540-1240 12 4000 100 3200 10 3.3 550 50 2.1
D3540-1250 12 5000 110 4300 8 3.5 600 46 2.2
D3540-2430 24 3000 50 2300 9 2.1 210 38.5 1.5
D3540-2440 24 4000 55 3000 10 3.1 230 40 0.7
D3540-2450 24 5000 60 4100 10 4.2 320 48 1

Gear motor Technical Data:

Reduction ratio 3.7 5.1 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
(L) Length(mm) 31 31 35.8 35.8 35.8 42.1 42.1 42.1 42.1 48.9 48.9 48.9
No-load speed (r/min) 809 579 214 158 111 59 42 30 22 16 11 8.1
Rated speed (r/min) 620 444 164 121 85 45 32 23 17 12 8,7 6.3
Rated torque (mN.m) 0.03 0.042 0.1 0.14 0.2 0.34 0.47 0.66 0.91 1.1 1.5 2
mN.m
Max. permissible load in a short time		 0.6 0.6 2.5 2.5 2.5 5 5 5 5 6 6 6

For custom made, please feel free to contact us today.
