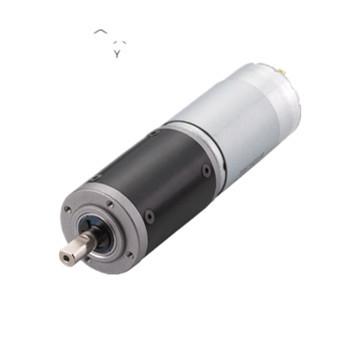

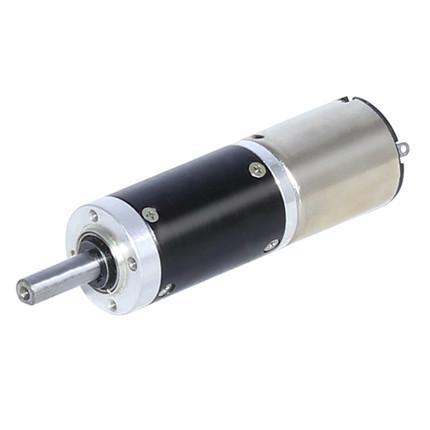

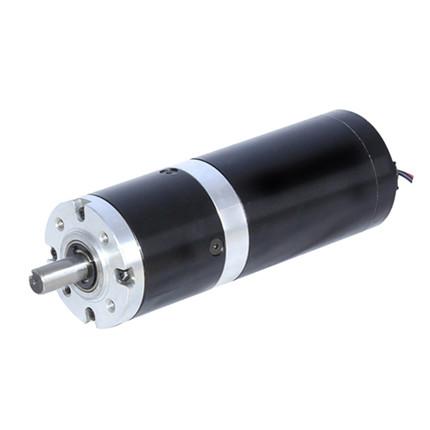

Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG
Specifications
Brand Name :
Retek
Model Number :
D3657PLG
Certification :
CCC,UL,Reach, RoHS, CE
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20000PCS/Month
Delivery Time :
14days
Packaging Details :
150PCS/Carton
Optional Voltage :
DC 12V/24V
Torque Range :
0.3Nm~3.0Nm
Power :
4.5W~7W
Pricing :
$5.00~$12.00
Original :
China
Description

D3657PLG: DC Gearmotors for Automatic Doors,Automobiles,Actuators and Automated Devices.

Typical Application:

Gearmotor, linear actuator,power tool,automated devices

Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.

Drawing:

Low Vibration Electric Gear Motor 12V 24V For Automatic Doors D3657PLG

Motor Technical Data:

TYPE Rated
voltage
VDC		 No-load
speed
r/min		 No-load
current
mA		 Rated
speed
r/min		 Rated
torque
m.Nm		 Output
power
W		 Rated
current
A		 Stall
torque
m.Nm		 Stall
current
A
D3657-2430 24 3000 100 2500 15 4.5 0.52 92 2.2
D3657-2436 24 3600 120 3000 17 5 0.5 89 2
D3657-2442 24 4200 120 3600 19 7 0.52 97 2.8

Gear motor Technical Data:

Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
(L) Length(mm) 31 31 38.5 38.5 38.5 48.2 48.2 48.2 48.2 55.4 55.4 55.4
No-load speed (r/min) 810 577 214 157 111 59 42 30 21 16 11 8.1
Rated speed (r/min) 675 480 178 131 92 49 35 25 18 14 9.5 7.2
Rated torque (mN.m) 0.052 0.074 0.19 0.25 0.36 0.65 0.91 1.3 1.8 2.3 3 3
mN.m
Max. permissible load in a short time		 1 1 3.5 3.5 3.5 7.5 7.5 7.5 7.5 9 9 9

For custom made, please feel free to contact us today.
