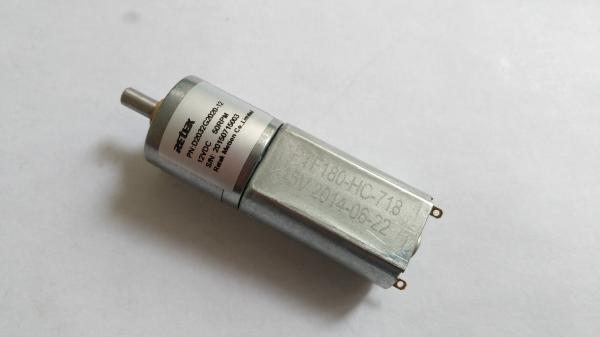

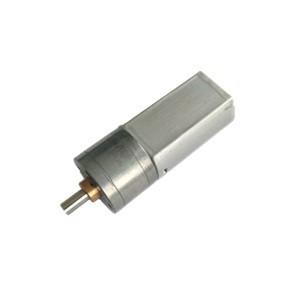

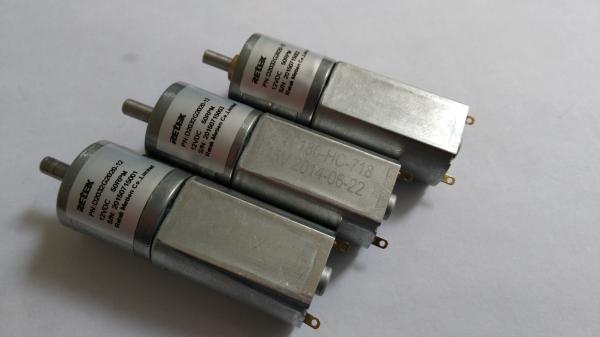

Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material
Specifications
Brand Name :
Retek
Certification :
CCC,UL
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20000PCS/Month
Delivery Time :
14days
Packaging Details :
150PCS/Carton
Model Number :
D2032PLG
Optional Voltage :
DC 3V/6V/12V/24V
Powers :
2W~20W
Custom Made :
Accept Custom-Made
Pricing :
Competitive
Original :
China
Description

D2032PLG20: DC Gearmotors for home appliances, toys and auto doors

Typical Application:

Gearmotor, linear actuator,power tool,automatic doors and toys.

Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.

Drawing:

Smooth Operation DC Gear Motor Totally Enclosed With Stainless Steel Shaft Material

Technical Data

Motor Technical Data:

TYPE Rated
voltage
VDC		 No-load
speed
r/min		 No-load
current
mA		 Rated
speed
r/min		 Rated
torque
mN.m		 Output
power
W		 Rated
current
mA		 Stall
torque
mN.m		 Stall
current
A
D2238-1230 12 3000 30 2350 3 0.7 110 11 0.35
D2238-1245 12 4500 35 3570 3 1.1 145 15.5 0.65
D2238-1260 12 6000 50 5150 3 1.6 195 19.5 1.1

Gearmotor Technical Data:

Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369 516 720
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4 4 4
(L) Length(L) mm 24.4 24.4 33 33 33 41.5 41.5 41.5 41.5 49.8 49.8 49.8 49.8 49.8
No-load speed r/min 1500 1200 428 315 222 117 84 60 43 31 23 16 11 8.3
Rated speed r/min 1390 990 360 270 190 100 72 51 37 27 19 14 10 7.5
Rated torque N.m 0.01 0.014 0.037 0.051 0.072 0.13 0.18 0.25 0.35 0.45 0.64 0.9 1 1
N.m
Max. permissible load in a short time		 0.3 0.3 1.2 1.2 1.2 2.5 2.5 2.5 2.5 3 3 3 3 3

For custom made, please feel free to contact us today.
