Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT
Specifications
Brand Name :
Retek
Model Number :
D63 Series
Certification :
CCC,UL
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Supply Ability :
10000PCS/Month
Delivery Time :
14days
Packaging Details :
25PCS/Carton
Optional Voltage :
DC 12V/24V/36V
Powers :
70W~200W
Pole :
2, 4
Application :
Wheel Chair, Blowers and Fans
Shaft OD :
8mm, 10mm
Original :
China
Optional Motor Diameter :
63mm, 64mm diameter
Description

φ63mm OD: D63 Series 63ZYT DC Motors for disabled people wheel chairs and robotics

Typical Application:

Gearmotor, linear actuator,Wheel chair, Patient beds, Dental Chair, Linear Actuators and other Medical Faclitlities.

Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.

Optional Features:

1. Shafts: SS303, SS304

2. Caps: Die-cast or CNC machined caps.

3. Optional Voltage: 12V/24V/36V DC

4. Frame Length: 90mm, 120mm, 125mm

5. Skewed slots design for low electro noise

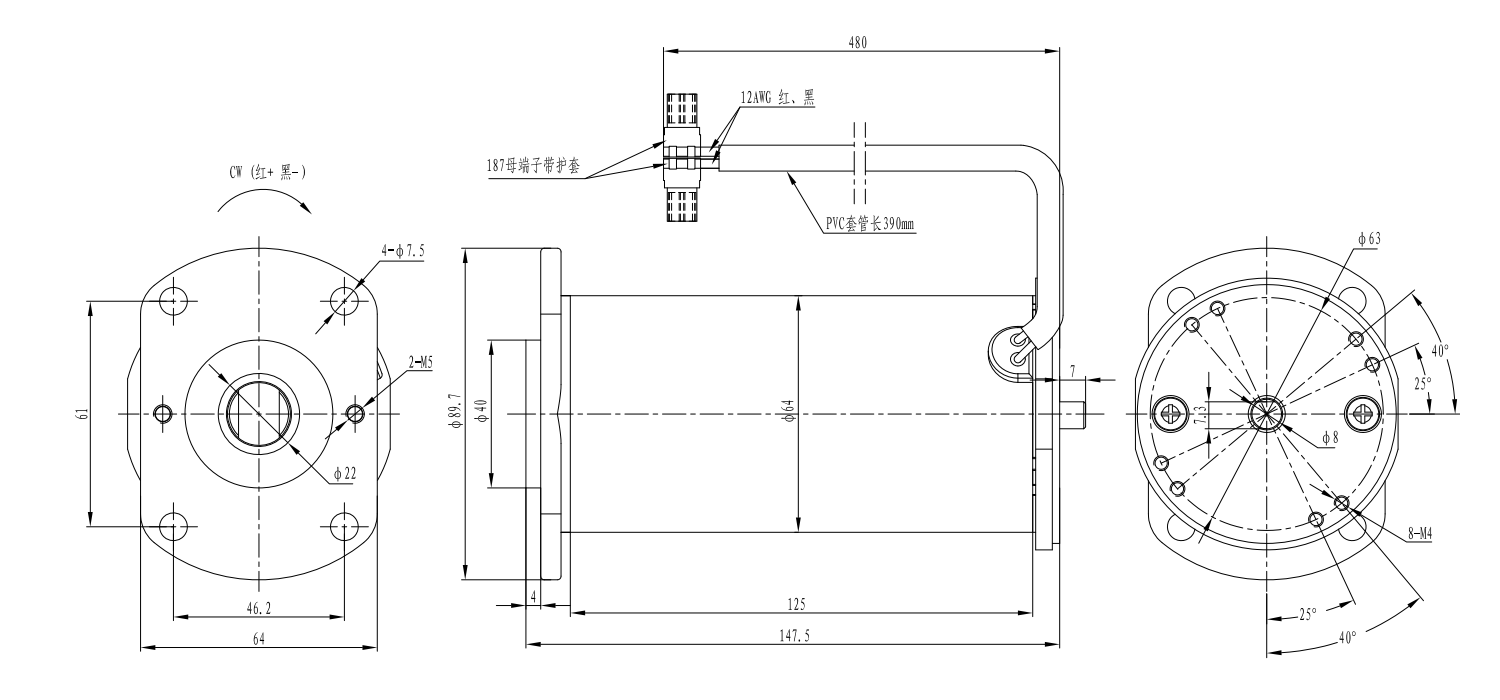

Drawing:

Wheel Chair Brushed Electric Motor High Precision DC 24V / 36V Voltage 63ZYT

Typical Performances:

Type Rated
Voltage
(VDC)		 No-load
Speed
(r/min)		 No-load
Current
(A)		 Rated
Speed
(r/min)		 Rated
Torque
(N.m)		 Output
Power
(W)		 Rated
Current
(A)		 Stall
Torque
(N.m)		 Stall
Current
(A)
D63125A-24 24 3000 0.5 2600 0.25 70 4.6 1.1 20
D63125B-36 36 3300 0.5 2700 0.34 100 4 1.6 16

For custom made, please feel free to contact us today.
