Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor
Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor
Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor
Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor
Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor
Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor
Specifications
Brand Name :
Retek
Model Number :
D64110WG180-90
Certification :
CCC,UL,GSA,CE
Place of Origin :
China
MOQ :
1000pcs
Price :
$35
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000PCS/Month
Delivery Time :
30days
Packaging Details :
1PCS/Carton
Voltage :
DC 90V
No-Load Bare Motor Speed :
3500RPM
On-Load Bare Motor Speed :
3300RPM
Gear Ratio :
180:1
On-Load Speed :
18.3RPM
Stalled Torque :
108Nm
Stall Current :
8.5A
Original :
China
Description

Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor

Key components made in house.

*Brushed DC Motors

*CNC Machined Caps

*Shafts

*Metal Gears

The motor can be used as a control motor (encoder assembly) and drive motor. It can also be equipped with different worm gearboxes and planetary gearboxes for different applications.

Typical Application:

Dental Chair, Patient Beds, Automatic Doors,Welder Machine, Door Opener and other Automated Devices

Features:

1. Low Noise

2. Planetary Gear PLUS Worm Reduction Gear

3. Robust Stall Torque

4. Metal Gears Inside

5. Selected branded bearings

6. Branded lubrication grease for better lubrication

Technical Data:@90VDC Performance

Voltage Range 90VDC
Rotate Direction CW from shaft load view
Bare motor performance:
No-load Speed 3500rpm±10%
Load Torque 0.1N.m
Load Speed 3300rpm±10%
Load Current ≤2A
Stall Torque 1.55Nm
Stall Amps 8.5A
Gear Motor Performance:
Gear Ratio 180/1
Noload Speed 19.5rpm±10%
Load Speed 18.3rpm±10%
Load Torque 7.2N.m.
Stall Torque Estimated 108Nm
Stall Amps 8.5A

Parameters:

Model D60/D64
Rated voltage V dc 12 24 48
Rated speed rpm 2800 2800 2800
Rated torque mN.m 250 250 250
Current A 9.0 4.5 2.9
Starting torque mN.m 1300 1300 1300
Starting current A 39 19.5 13
No load speed rpm 3500 3500 3500
No load current A 1.2 0.8 0.5
Demag current A 60 30 20
Rotor inertia Gcm2 400 400 400
Weight of motor g 1000 1000 1000
Motor length mm 95 95 95

Drawing:

Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor

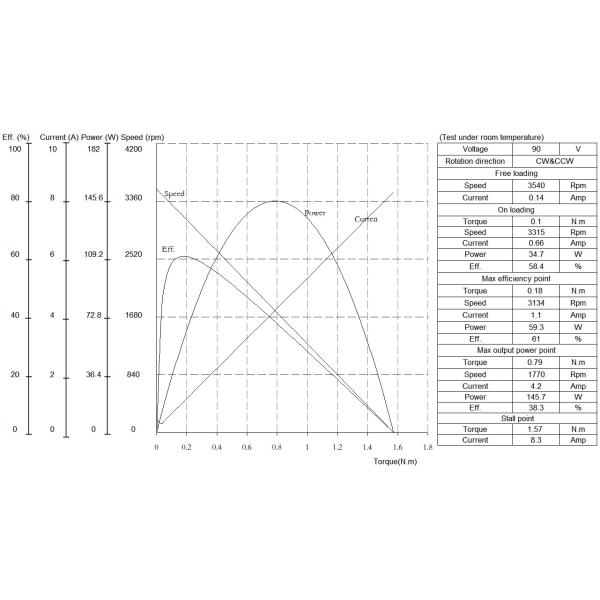

Typical Curve @90VDC

Micro High Voltage 90V Low Rpm DC Gear Motor With Encoder , Worm Gear Motor
