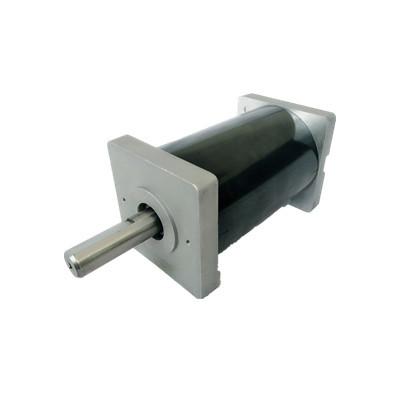

Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts
Specifications
Brand Name :
Retek
Model Number :
D91127
Certification :
CE, UL
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
Western Union, T/T
Supply Ability :
20000PCS/Month
Delivery Time :
3~4 weeks
Packaging Details :
by air,by sea
Optional Voltage :
12VDC,24VDC,130VDC,162VDC
Output Power :
100~500 watts
Duty :
S1, S2
Speed Range :
up to 9,000 rpm
Bearing Type :
durable brand ball bearings
Pricing :
Competitive
Custom Mad :
Accept Custom-Made
Original :
China
Description

D92 series brushed DC motor,Robust Brushed DC Motor

This product is a compact high efficient brushed DC motor, magnet ingredient consist of NdFeB(Neodymium Ferrum Boron) which greatly enhance the efficiency comparing to others available motors in the market.

The motor also adopts the skewed slots design which greatly improve the electromagnetic noise.

By using bonded epoxy, the motor can be used in very harsh circumstances with severe vibration such as ambulance ventilator pump, suction pump and etc. In medical field.

We also provide the service to add the shield fabric wrapped the motors and capacitors to ensure it fulfill high standard working condition meeting EMI and EMC requirements.

It is also durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 1000 hours long life requirement requirements and IP68 grade if necessary.

Specification:

Voltage Range: 12VDC,24VDC,130VDC,162VDC
Output Power 100~500 watts
Duty S1, S2
Speed Range up to 9,000 rpm
Operational Temperature: -20°C to +40°C
Bearing Type heavy duty brand ball bearings
Insulation Grade Class F, Class H
Optional shaft material #45 Steel, Stainless Steel, Cr40
Optional housing surface treatment Powder Coated, Electroplating,Anodizing
Housing Type Air Ventilated, Water Proof IP68.
Slot Feature Standard Straight Slots- Skewed Slots Feature Available
EMC/EMI Performance pass all EMC and EMI testing.

Application:

suction pump, window openers,diaphragm pump, vacuum cleaner,clay trap, electric vehicle, golf cart, hoist, winches, precision grinders,automotive machines,food waste processing machines and etc.

Dimension:

Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts

Parameters:

Model D89/D90/D91
Rated voltage V dc 12 24 48
Rated speed rpm 3200 3000 3000
Rated torque N.m 0.5 1.0 1.6
Current A 20 20 14
No load speed rpm 4200 3500 3800
No load current A 3 2 1
Rotor inertia kgcm2 1.45 2.6 2.6
Weight of motor kg 4 5 15
Motor length mm 155 199 199

Typical Curve @90VDC:

Dia 92mm Brushed DC Motor Robust Powder Coated 100 - 500 Watts

This D92 series brushed DC motor(Dia. 92mm) applied rigid working circumstances in commercial and industrial application such as tennis thrower machines, precision grinders, automotive machines and etc.

It is durable for harsh vibration working condition with S1 working duty. Stainless steel shaft, and anodizing surface treatment can be customized made.
