Wheelchair Lockable Gas Spring
Wheelchair Lockable Gas Spring
Wheelchair Lockable Gas Spring
Wheelchair Lockable Gas Spring
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
CSZY
Model Number :
YQ
Style :
Cylinder
Load Type :
Gas
Material :
Steel
Usage :
Industrial
Colour :
Black,silver etc.
Rod :
Chromate, QPQ, Nitride
Tube :
Painted
OEM :
OEM is welcome
Packaging Details :
1pcs/polybag,50-100pcs/carton carton and packing can be customized according to the detailed request
Delivery Detail :
2-3 weeks according to the quantity
MOQ :
20PCS
Price :
USD1.4~USD2.5/PCS
Delivery Time :
4-7WORKING DAYS
Payment Terms :
TT, Paypal,
Supply Ability :
10000PCS PER DAY
Application :
WheelChair|Treadmill|Chair|Car|Tailgate|Industrial
Feature :
Lockable
Inside :
Nitrogen
Life time :
100
Product name :
Gas Spring
Description

Heavy Duty Lockable Gas Spring WheelChair Nitrogen Gas Lift Support

High Quality Gas Lock Spring for Car,Cabinet,Furniture,Machinery

Specifications

gas strut for chair backrest
one-step molding tube
superior quality,reasonable price
pass SGS/TUV/ISO test
30000 cycles 3year

Compression gas spring can be used in:

Boot, bonnet, hatch and tailgates
Canopies and ute lids
Pop tops and beds on caravans and campers
Covered in trailers (tradesman and campers)
Farm equipment eg Tractors, Harvesters etc
Buses

Industrial machinery
Commercial eg Office chairs, photocopiers, printers
Shockers - especially for imported cars and motor bikes
Seat dampers for trucks and tractors

Tilt assist struts for outboard motors
Locking struts eg Chairs, bus seats, hospital beds
Stainless Steel Struts eg Marine, catering equipment

Product information:

Product name

Lockable gas spring

Material

Iron+plastic/steel+plastic

Color

Black/silver or as customer’s request

Usage

Chair/sofa/seat/furniture and so on

Package

1pc/poly bag,50pcs/water proof carton

Manufacturing specification for reference:

Type

Tube diameter

Piston rod diameter

stroke

Force(N)

Compression gas spring

12

4

20-50

40-200

15

6

50-150

40-300

18

6/8

50-250

100-600

19

6/8

50-250

100-600

22

8/10

50-350

100-800

25

10/12

50-450

100-1000

27

10/12

50-700

100-1200

28

12/14

50-700

100-1500

Advantage and sales point:

1) Quality always comes first

2) Reasonable price & good service

3) OEM and ODM order are welcome

4) Fast and safe delivery for samples and orders

5) Quick responses within 24 hours

6)Aiming to get repeat orders from 90% customer after the trial order

7)Making progress with customers together

Sample policy:

We are glad to offer sample to you for testing the quality

1) Normal specification gas spring sample within 3days

2) Special specification gas spring sample within one week

3) Welcome to present your drawings and pictures

QC:

Material: Strictly control of material using, meet international requested standards

Semi-finished products inspection: product inspection before 100% finished

Production line test: with work team or data engineer who will inspect machines and lines a fixed period

Finished product inspection: quality and property test before products are packed and load

About the gas spring.

1. No step adjustment

Stop and Locking can be set at an arbitrary

position by opening and locking the internal oil(gas).

2. Easy operation

Operation is easy since opening and locking can be done by pressing the valve oin .

3. smooth operation

The movement is smooth because of an oil buffering function and the low elasticity index providers pleasant feeling.

4. Compact

It is easy to install as it is light in weight due to its reduced length and compact external mirror.

5. Simple installation

It is simple to install due to its convenient configuration.

welcome to visit our factory

Product

Name:

Gas spring / compression gas spring / free gas spring / lockable gas spring / locking gas spring / elastic lockable gas spring / rigid lockable gas spring / gas struts/door closer.

Now usually we can supply as below:

D

Tube Diameter

d

(Piston Rod Diameter)

M

(Thread)

F1

(Minimum Extension Force)

12

4

M4/M3

10-200 N

15

6

M6

40-400 N

18

6/8

M6/M8

50-600 N

19

6/8

M6/M8

50-750 N

22

8/10

M8

100-1500 N

25

10/12

M8

100-2000 N

27

10/12

M10

100-3000 N

28

12/14

M10

100-3000 N

If you have your drawing, detail data or special requirements of gas spring, just please let us know. We could produce as your design or design for you.

Sample

Two samples are free, just freight will be undertaken by your side. Or you can arrange global express company to pick up the samples from our factory.

If you have your own size gas spring, welcome you send us your samples, we can make sample and production same as your samples.

Application

Our service

1)Quick responses with full attention within 24 hours.

2) OEM or ODM orders are welcome.

3) Samples and production status updated promptly.

4) Fast and safe delivery for samples and orders.

5) Best service before and after sales.

Company Introduction

Our company was established in March 2002.It is a specialized company which dedicated to gas sring research and development ,production and sales.

We have been in production and export business for 10 years,now we have client from Europe ,North America,South America ,Middle East Asia etc.

Our pursuit is Good Quality,Good Service ,Long Term Cooperation.

Welcome your inquiry anytime.

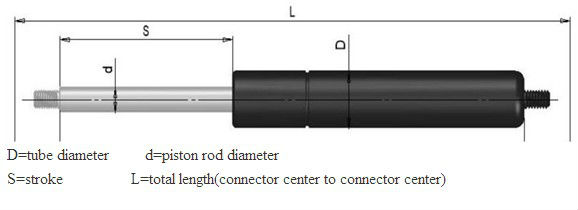

Drawing:

Wheelchair Lockable Gas Spring

Picture:
