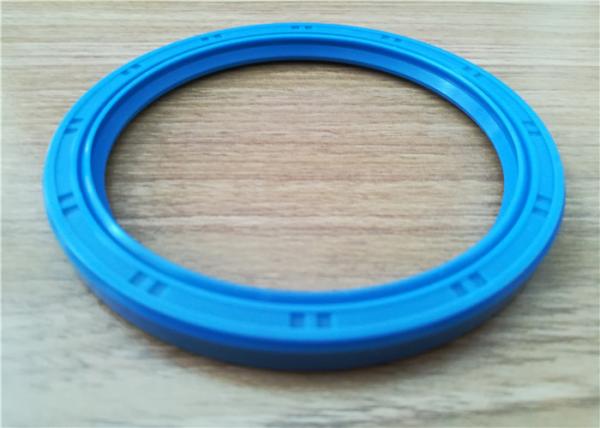

Anti Corrosion 38MM PTFE Spring Energized Rubber Oil Seal
Anti Corrosion 38MM PTFE Spring Energized Rubber Oil Seal
Specifications
Certification :
ISO-9001:2000, ISOTS16949
Place of Origin :
Qingdao, China
MOQ :
500 USD
Payment Terms :
L/C, T/T
Delivery Time :
30 days
Packaging Details :
neutral packing
Product name :
spring energized ptfe oil seal
Material :
PTFE
Color :
White/Black, etc
Size :
22*38*8
Item :
spring energized seal
style :
oil seal
Description

High-strength sealing oil seal

Oil seal
The oil seal is designed to close the space between the fixed and moving parts of the mechanical equipment, which helps prevent lubricant from escaping. They also prevent harmful contaminants from entering the machine, especially in harsh environments. Oil seals are actually an important part of every running machine and vehicle. They can protect all types of precision-structured bearings, close-fitting ball bearings, sleeve bearings and rolling bearings. In precision bearings, oil seals help prevent lubricant from escaping the bearing or specific areas. In machine parts, oil seals help prevent abrasives, corrosive moisture and other harmful contaminants from entering the machine. They also help prevent the mixing of two different media (such as lubricating oil and water).

Product Description

Product name spring energized ptfe oil seal
Material Silicone, NBR, Metal & stainless steel, PTFE, etc.
Color Black, brown, red or as cusomer's requirement
Medium hydraulic oil, fire retardant liquid, water, gas
Samples available
OEM acceptable
The application and performance
low friction and good corrosion resistance. It can work whether if exist lubrication. The installation is very convenience.
Port Qingdao
Certificate ISO-9001:2000, ISOTS16949
Packing Details neutral packing or as your requirement
Style D(HTC)
Stand or nostand stand
Common types of fkm power steering oil sealss
Type Code number Main features Usage
Simple single lipped B It is commonly used for high and low speed rotating shafts and reciprocating movement to seal mineral, oil and water. Ordinary fkm power steering oil seals, in the case of less dust and impurities, the use of medium pressure, the reciprocating speed of <0.1m/s.
Regular lip FB In addition to the characteristics of the above S type fkm power steering oil sealss, dust can be prevented. Ordinary fkm power steering oil seals, with dustproof lips, dustproof, resistant to medium pressure
No spring type BV Spring free single lip type inner frame type rubber fkm power steering oil seals. Generally applicable to low-speed conditions, the sealing medium for the lubrication of ester.
Outer skeleton, single lip W With the spring single lip exposed skeleton rubber fkm power steering oil seals, waist thin, follow good, good rigidity. Ordinary fkm power steering oil seals, used in case of less dust and impurities
Outer skeleton, double lips FW With the lips of the lips exposed, skeleton rubber fkm power steering oil seals, waist thin, followed by good, high stiffness, good coaxial. Ordinary fkm power steering oil seals, with dustproof lips, dustproof, resistant to medium pressure <0.05
Fabricated single lipped Z From the inside and outside the outer skeleton fkm power steering oil seals skeleton assembly into piping and installation of high precision, fast heat dissipation, heavy load characteristics. Suitable for heavy load under high temperature and high speed condition
Fabricated double lipped FZ The assembled external skeleton fkm power steering oil seals with side lip has the characteristics of dust resistance, high installation accuracy, fast heat dissipation and heavy load characteristics. Apply to high temperature, high speed, heavy load under dust condition
Unidirectional reflux type Dextral SR,Levo DL A diagonal bar with angle in lip air measurement system using fluid mechanics principle, produces pump function, with reflux effect. Because of the backflow effect, the radial force is smaller than that of the ordinary fkm power steering oil seals, thereby reducing wear and heat build-up and improving service life
Pressure type NY The lip is short, stubby waist, with pressure, work pressure is less than 3MPa. The shaft end fkm power steering oil seals for high pressure pump, general PV value is less than or equal to 8

Advantages
Very good static seal
Good thermal expansion compensation
Shell allows greater roughness
Reduce the risk of corrosion
Sealing of low and high viscosity fluids
Medium main sealing lip, small radial force
Prevent harmful air pollutants
