Automoblie Oil pressure switch for General Motors 55 354 378 / 90 335 039
Automoblie Oil pressure switch for General Motors 55 354 378 / 90 335 039
Specifications
Place of Origin :
China
Brand Name :
HY
Certification :
ISO/TS 16949 : 2009
Model Number :
HY17.086
MOQ :
200pcs
Price :
Negotiation
Packaging Details :
White box
Delivery Time :
45 days
Payment Terms :
T/T or L/C
Supply Ability :
50000pcs/Month
Pressure :
0.5 bar
Material :
Steel and Plastic
Circuit :
Locked
OE :
90 336 039
Description

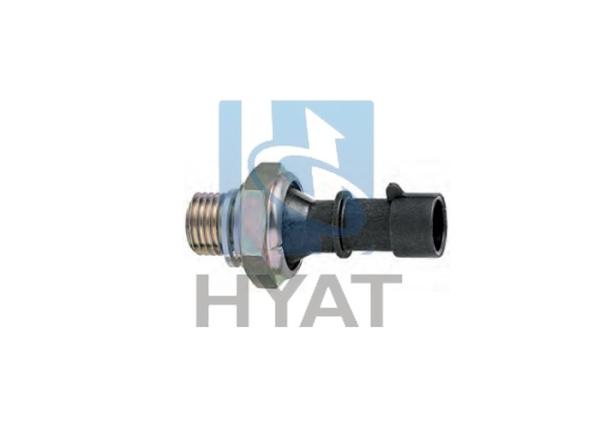

Automotive Oil pressure switch for General Motors OE 55 354 378

Quick Detail:

  1. Name: Oil pressure switch
  2. OE Number: 55 354 378
  3. Switch Pressure: 0.5 bar
  4. Main Material: Plastic and Steel
  5. Circuit: Locked
  6. Certificate: ISO/TS 16949:2009

Main Introduction

Its function is to indicate the existence of oil pressure in the engine.

If there is no oil or it runs out, the pressure switch opens or closes an electrical circuit, warning us with a dashboard light.

Each part number is calibrated to a specific actuating pressure.

Specifications

Model Number HY17.086
OE 021 919 081
Switch Pressure 0.5 bar
Circuit Locked
Number of ports 1
Spanner size 24
Thread size M14x1.5
Main Material Plastic and Steel
OEM Vehicle Brand CHEVROLET, DAEWOO, GENERAL MOTORS, HOLDEN OPEL, SAAB
Warranty 1 year
Market Aftermarket

OE and Applications

CHEVROLET
90336039
95961350
96281689
96494264
96647339
DAEWOO
90336039
95961350
96281689
96494264
96647339
GENERAL MOTORS
55 354 378
90 335 039
90 336 039
90 507 539
90 569 684
93 318 082
95 961 350
96 494 264
HOLDEN
90336039
90507539
OPEL
12 52 557
12 52 562
12 52 570
12 52 572
12 52 578
48 03 551
SAAB
45 04 585
47 70 186
55 354 378
59 62 816
90 569 684
95 44 610

CHEVROLET 　 DAEWOO 　
LANOS 1997-> LACETTI 2004->
AVEO 2006-> LANOS 1997->
CAPTIVA 2006-> LEGANZA 1997->2002
CRUZE 2009-> NUBIRA 1997->
EPICA 2005-> REZZO 2000->
EVANDA 2005-> TACUMA 2000->
KALOS 2005-> HOLDEN 　
LACETTI 2005-> ASTRA 1995->1998
LEGANZA 1998-> BARINA 1994->2000
NUBIRA 2005-> CALIBRA 1991->1997
OPTRA 2003-> COMBO 1994->1997
REZZO 2005-> OPEL 　
TACUMA 2005-> ANTARA 2006->
VIVANT 2000-> ASTRA F 1991->2005
DAEWOO 　 ASTRA G 1998->2005
EVANDA 2002-> ASTRA H 2004->
KALOS 2002-> CALIBRA A 1990->1997

OPEL 　 OPEL 　
COMBO 1989-> ZAFIRA 1999->
CORSA A 1982->1993 SAAB 　
CORSA B 1993->2000 900 II 1993->1998
CORSA C 2000-> 9000 1994->1998
FRONTERA B 1998-> 9-3 2004->
KADETT 1984->1993 9-5 1998->
MERIVA 2003-> 　 　
OMEGA A 1986->1994 　 　
OMEGA B 1994->2003 　 　
SENATOR B 1987->1993 　 　
SIGNUM 2003-> 　 　
SINTRA 1996->1999 　 　
SPEEDSTER 2003-> 　 　
TIGRA 1994->2000 　 　
VECTRA A 1988->1995 　 　
VECTRA B 1995->2003 　 　
VECTRA C 2002-> 　 　

Quality Standard

As we are OEM manufactory, we also keep aftermarket switch’s quality standard to OEM level. All of switch produced base on OEM processing, production line and inspection. Function inspection will be done for every switch before shipment.

R&D

We have a complete and experienced R&D team and one lab for auto switch and auto sensor. It effect to high efficiency and precision for analyzing and development of new product.
