380V 50HZ Powder Pouch Filling Machine 35L Hopper For Instant Fruit Juice Powder
380V 50HZ Powder Pouch Filling Machine 35L Hopper For Instant Fruit Juice Powder
380V 50HZ Powder Pouch Filling Machine 35L Hopper For Instant Fruit Juice Powder
380V 50HZ Powder Pouch Filling Machine 35L Hopper For Instant Fruit Juice Powder
Specifications
Brand Name :
ROTYPACK
Model Number :
RTS35L
Place of Origin :
CN
MOQ :
1 SET
Price :
USD 3210.00~4510.00/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6 SETS/month
Delivery Time :
21 DAYS
Packaging Details :
Fumigation wooden case
Packing speed :
20-50 bags/min
Voltage :
380V,50HZ
Power :
1.3 kw
Material :
Carbon Stainless Steel 303
Packing material :
PET,PP,Metal,Glass
Function :
FILLING,weighting
Warranty :
13 months
Noise index :
<53 DB
Size :
52*52*82 cm
Description

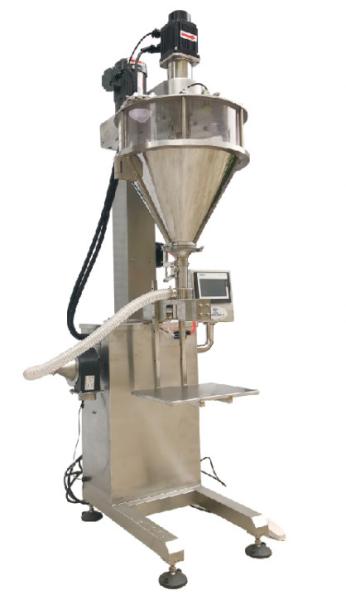

Semi-automatic Vertical Instant Fruit Juice Powder Pouch Jar Box Sachet Filling Machine

Product Description

Details of automatic powder filling machine

Technical parameters of servo screw:

1. Metering method: spiral rotary filling

2. Packaging weight: 52-802g (transform spiral accessories)

3. Packaging accuracy: ≤±0.1-1.5%

4. Packaging speed: 22-52bags /min

5. Power supply: three-phase four-wire 380V (or customized single-phase 220V)

6. Machine power: 1.3KW

Filling servo motor (Panasonic servo motor) MDMA1.8KW, torque 11.5n.m, stirring motor 400W.

7. Machine weight: 78Kg

8.Hopper:35 L
Interface WEINVIEW(TAIWAN)
PLC MITSUBISHI(JAPAN)
Low voltage equipment ABB,SCHNEIDER,CHINT
Stirring motor PANASONIC(JAPAN)
Swing system MOTOR
Conveyor motor ZAGA(TAIWAN)
Filling motor DONGYUAN
Weighing sensor ZEMIC
Mechanical part STAINLESS

Main features
Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system to guarantee the high packaging accuracy.
Servo motor does up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.
With servo motor and servo drive controlled auger, perform stably, and with high accuracy.
PLC control, touch screen display, easy to operate.
Made of stainless steel, combined hopper or split hopper, easily to be cleaned.
With handwheel to adjust the height , easy to fill many kinds of weight.
With fixed screw installation, the material quality won’t be effected.
Process: put bag/can(container) on the machine → container raise → fast filling,container declines → weight reaches the pre-set number → slow filling → weight reaches the goal number → take the container away manually
Note: the pneumatic bag-clamp equipment and can-hold set is optional ,they are suitable for can or bag filling separately.
Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
