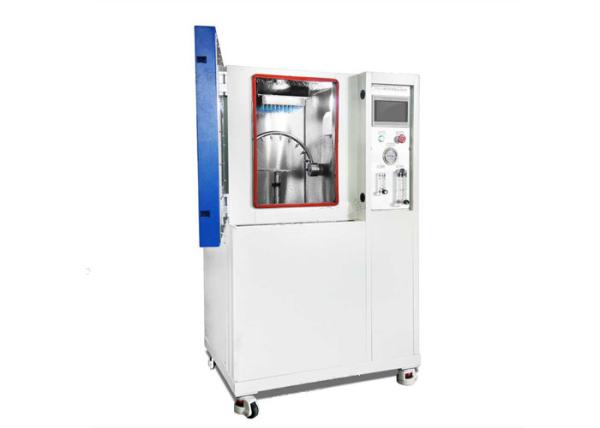

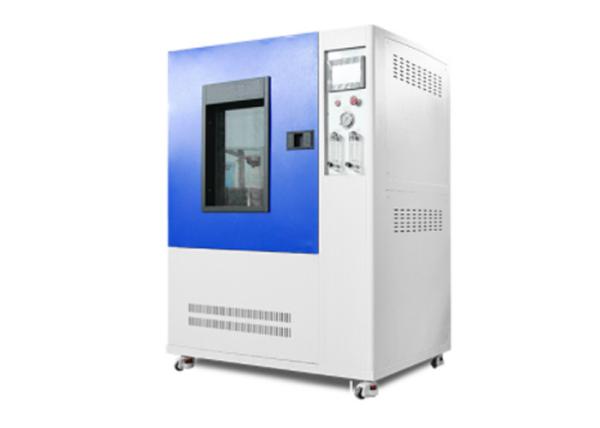

IP Test Equipment Comprehensive Rain Testing Chamber For IPX1 To IPX4 Chamber Type

Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) IPX1, IPX2, IPX3, IPX4.

Application:

It is used for the testing of IPX1-IPX4. Mainly used in lighting, household appliances, industrial electrical, communication cabinets, auto parts, mobile intelligence and other fields.

Feature:

1. Can be used in workshops, laboratories, etc., for IPX1 / IPX2 / IPX3 / IPX4 waterproof degree test.

2. Chamber structure, recycling water, energy saving and environmental protection, no need to build a special waterproof laboratory, saving input costs.

3. There is a transparent observation window (tempered glass material) on the door, and LED lighting is installed in the box to facilitate internal observation.

4. Installed sample power outlet (AC220, 10A), sample power supply power off time can be controlled by the program: power failure (0-999min) - power (0-999min) - power outage (0- 999min), suitable for the sample to be powered on and off during the test.

5. Turntable drive: the use of high-quality stepper motor, speed and angle can be set on the touch screen (adjustable), accurate stepless adjustment within the standard range, and can automatically control the positive and negative rotation (positive and reverse: Suitable for sample power test to prevent winding)

6. The test time can be set on the touch screen, the setting range is: 0-999min (adjustable).

7. Filtration measures: Standard high-precision filter can effectively filter impurities in tap water; filter element can be replaced regularly.

8. Added the function of “remote operation”: the user can perform parameter setting, start, stop, clear data and other actions on the mobile phone and computer. (You need to download the corresponding software).

Material description:

1. Made of domestic high-quality steel plate, the surface is painted with paint, beautiful and durable.

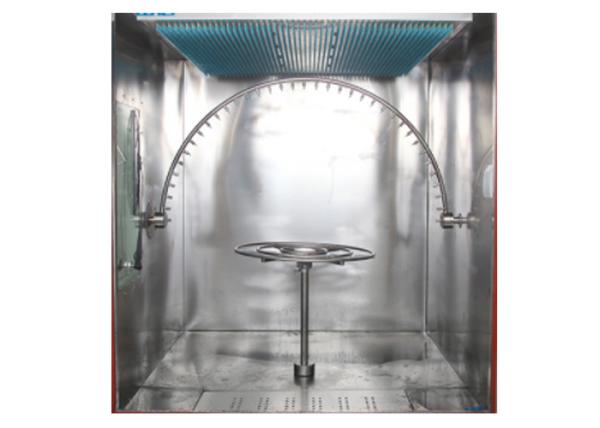

2. Inner chamber and turntable: All are made of SUS304# stainless steel plate to ensure no rust for long time use.

3. The core control system: the use of color 7-inch touch screen + PLC (software program developed by Guangzhou Hongce independently).

4. Electrical components: the use of brands such as LG, Omron (wired process fully meets national standards).

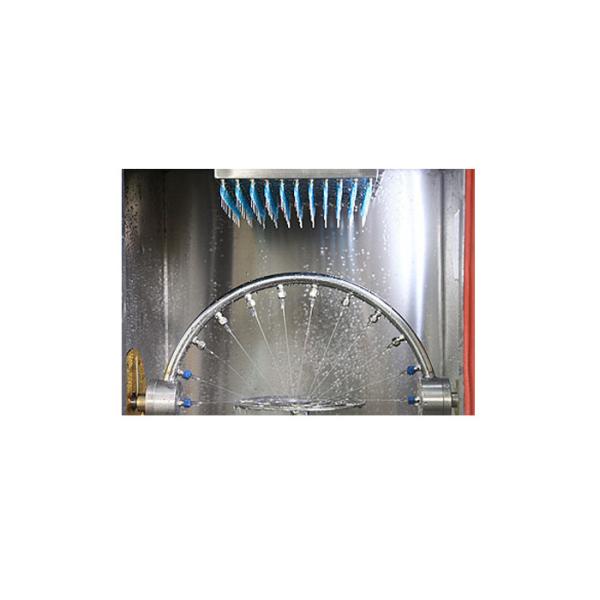

5. Oscillating tube drive: the use of high-quality servo stepper motor, oscillating tube speed, angle is adjustable, there is no out-of-step problem ("out of step" will cause the swing tube to malfunction, hit the middle of the turntable shaft, causing equipment damage )

6. The drip tank is constructed of high-rust stainless steel; the nozzle contact position is made of brass cone for easy installation of the spray nozzle.

Parameters:
