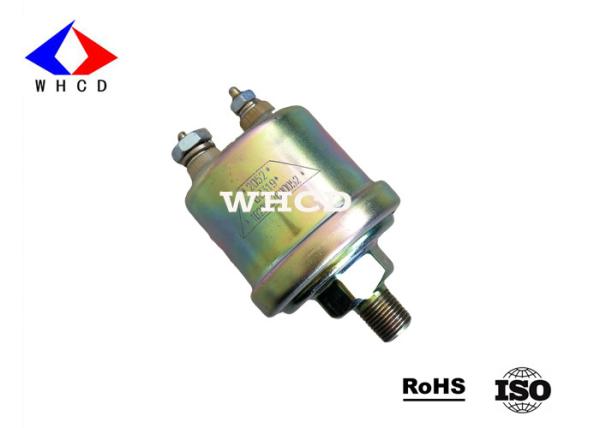

Color Zinc Plated Engine Oil Pressure Sensor For Truck Brake System

Product Description

The oil pressure sensor is installed on the main oil channel of the engine. When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit. The pressure signal is connected to the oil pressure meter. When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.

Application

Oil pressure sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project etc.

Technical Data

• Operating voltage: 6~24V
• Conducting power: < 5W
• Operating temperature: -25 ~120℃ (120℃ MAX 1H)
• Measuring range: 0~5Bar or 0~10Bar
• Alarm: 0.8Bar or 1.4Bar
• Output signal: Standard resistance value: 10~184Ω
• Thread fitting: NPT1/4, NPT1/8, M10, M10x1 or customized as requires.
• Protection rank: IP66

Feature

Oil pressure sensor combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature etc.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.
2. the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Delivery

Normally it’s 3-5 working days after payment cleared.

Payment

30% down-payment for production,the balance payment before shipment.

Packing

A: Product packed in foam box with bubble bag.

B: According to client’s requirement.

Shipment

DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.

Our Service

1. High quality with competitive price & stock.

2. Product Warranty: 12 Months
3. Sample order or Small order Accept,

4. OEM Manufacturing welcome: Product, Package...

5. Fast Delivery: delivery within 7 - 10 working days

6. Easy to pay, various payment methods.
7. We will reply you in 24 hours. If you don't receive our reply, please kindly re-sent mail or give a call any time.

8. You may consider to send the defective item via economical way, and we can send back together with your next order.
