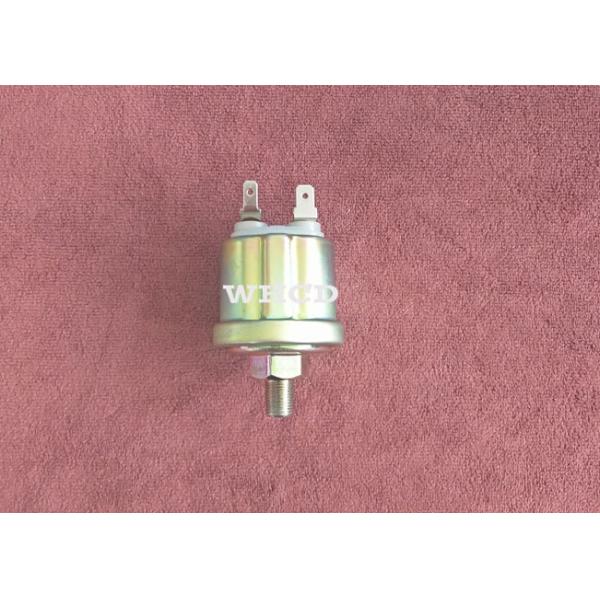

Color Zinc Plated Engine Oil Pressure Sensor For Universal Trucks / Bus

Product Description

We supply the engine oil pressure sensor with the feature of compact configuration, high reliability, easy to install, vibration proof and all-metal sealed pressure system which withstands more than 10 million pressure cycles without failure. This series is used to measure the pressure of engine oil, brake system, fuel, diesel engine high-pressure common rail test system in the automotive industry. The engine oil pressure sensor can also be used to measure the pressure for liquid, gas and steam.

Technical Data

Conducting power: < 5W

Operating temperature: -40 ~125℃

Measuring range: 0~10 Bar

Alarm: 0.8 Bar

Output signal: 10~184Ω

Thread fitting: NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized as requires.

Protection rank: IP66

Feature

Oil pressure sensor combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature etc.

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Delivery

Normally it’s 3-5 working days after payment cleared.

Payment

30% down-payment for production,the balance payment before shipment.

Packing

A: Product packed in foam box with bubble bag.

B: According to client’s requirement.

Shipment

DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.

Advantage

1.Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
