1.4Bar IP65 Diesel Generator VDO Oil Pressure Sensor
1.4Bar IP65 Diesel Generator VDO Oil Pressure Sensor
Specifications
Brand Name :
WHCD
Model Number :
CDYG3-15010301
Certification :
ANSI,ISO9001
Place of Origin :
WUHAN,CHINA.
MOQ :
50PCS
Price :
$4/pc~$8/pc
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
100000pcs/year
Packaging Details :
25PCS/foam box , 100pcs / out carton
Color :
color znic / blue white znic
connector :
2
material :
znic treated
operation temperature :
-25°C+100°C
resistance :
10-184Ω
measuring range :
0-10bar
thread :
1/8-27NPTF,NPT 1/8,NPT1/4 ,M18*1.5,M4,M16*1.5 and etc....
Alarm :
0.08+-0.02MPa
liquid :
water and oil
protection :
dust and waterproof IP65
voltage :
6-24V
Description

Vdo Water Tempressure Sensor Switch Engine Spare Part Fuel Tan Vdo Diesel Generator Genset Oil Pressure Sensor

Product Features

  • ✿ This oil pressure sensor is for VDO with thread type of 1/8-27NPTF, perfectly fitted for VDO models.
  • ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.
  • ✿ The oil pressure sensor can accurately measure the pressure to be measured and transmit the test results to subsequent displays or controls as appropriate.
  • ✿ The oil pressure sensor is an important part of engine, used for pressure measurement and control.
  • ✿ You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.

APPLICATION:

  • ✿ It combines the advantages of excellent anti-vibrat ion performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
  • ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.It is largely applied t o many fields, such as t he engine pipe of vehicles and ships, water processing projects,inspection and control of indust rial processes, hydraulic and pneumatic control project s, etc.
  • ✿ Protection rank: IP65

PRODUCT FEATRUES:

  • ✿ Operating voltage: 6~24V
  • ✿ Conducting power: <5W
  • ✿Operating temperature: -25 ~120℃(120℃ MAX 1H)
  • ✿ Measuring range: 0~5Bar or 0~10Bar
  • ✿ Alarm: 0.8Bar or 1.4Bar customized
  • ✿ Output signal: Standard resistance value: 10~184Ω
  • ✿ Thread fitting: NPT1/4,NPT1/8,M10,M10X1 or customized as requires.

APPLICATION:

Within one year after shipment, except for improper installation and operations by user.

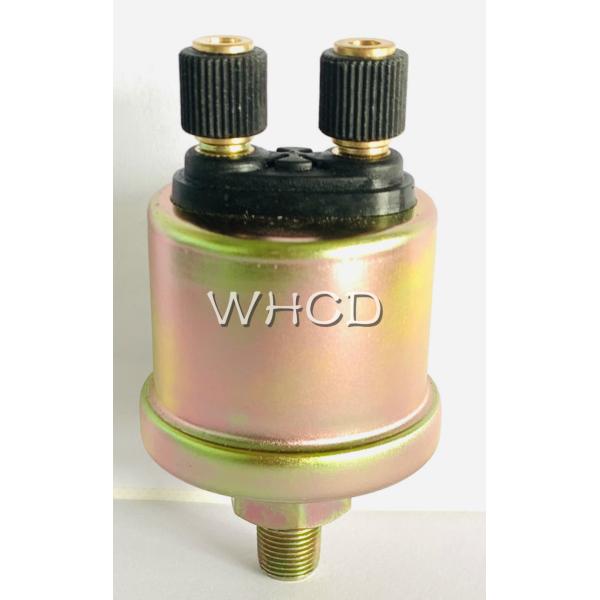

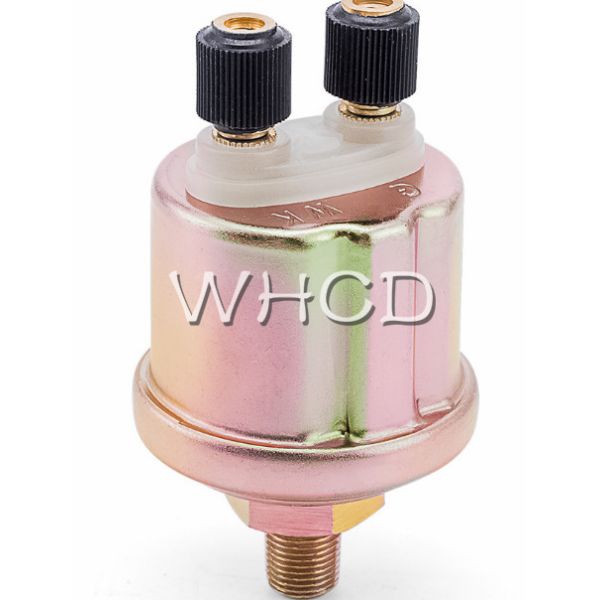

PRODUCT PICTURE :

1.4Bar IP65 Diesel Generator VDO Oil Pressure Sensor1.4Bar IP65 Diesel Generator VDO Oil Pressure Sensor1.4Bar IP65 Diesel Generator VDO Oil Pressure Sensor1.4Bar IP65 Diesel Generator VDO Oil Pressure Sensor1.4Bar IP65 Diesel Generator VDO Oil Pressure Sensor
