NPT1/8 Diesel Engine Oil Pressure Sensor For Military Vehicles
NPT1/8 Diesel Engine Oil Pressure Sensor For Military Vehicles
NPT1/8 Diesel Engine Oil Pressure Sensor For Military Vehicles
NPT1/8 Diesel Engine Oil Pressure Sensor For Military Vehicles
Specifications
Brand Name :
WHCD
Model Number :
CDQYG3-19011201
Certification :
ISO9001 ,ANSI
Place of Origin :
WUHAN,CHINA
MOQ :
50PCS
Price :
$4/pc~$8/pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/year
Delivery Time :
5-25 working days
Packaging Details :
25PCS/foam box , 100pcs / out carton
Color :
blue and white znic
measuring range :
0-120PSI
output :
0-30Ω
Thread fitting :
NPT1/8
Output connection :
M4
Description

Military vehicles Heavy duty /light truck Diesel engine wear resistant and long life engine oil pressure sensor

Product Features

  • ✿ This oil pressure sensor is for VDO with thread type of 1/8-27NPTF, perfectly fitted for VDO models.
  • ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.
  • ✿ The oil pressure sensor can accurately measure the pressure to be measured and transmit the test results to subsequent displays or controls as appropriate.
  • ✿ The oil pressure sensor is an important part of engine, used for pressure measurement and control.
  • ✿ You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.

APPLICATION:

  • ✿ It combines the advantages of excellent anti-vibrat ion performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
  • ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.It is largely applied t o many fields, such as t he engine pipe of vehicles and ships, water processing projects,inspection and control of indust rial processes, hydraulic and pneumatic control project s, etc.
  • ✿ Protection rank: IP66

PRODUCT FEATRUES:

  • ✿ Operating voltage: 6~24V
  • ✿ Conducting power: <5W
  • ✿Operating temperature: -25 ~120℃(120℃ MAX 1H)
  • ✿ Measuring range: 0~5Bar or 0~10Bar
  • ✿ Alarm: 0.8Bar or 1.4Bar customized
  • ✿ Output signal: Standard resistance value: 10~184Ω
  • ✿ Thread fitting: NPT1/4,NPT1/8,M10,M10X1 or customized as requires.

APPLICATION:

Within one year after shipment, except for improper installation and operations by user.

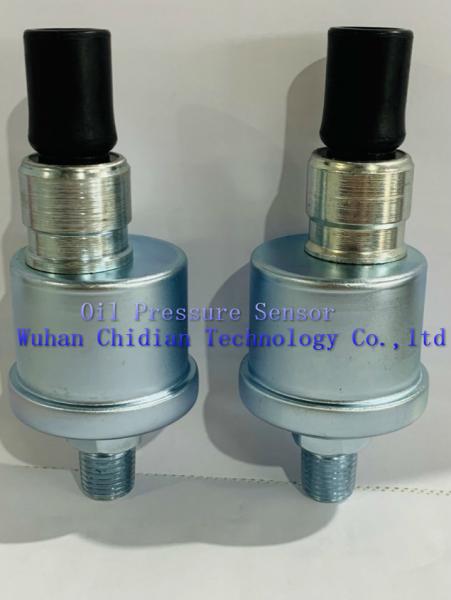

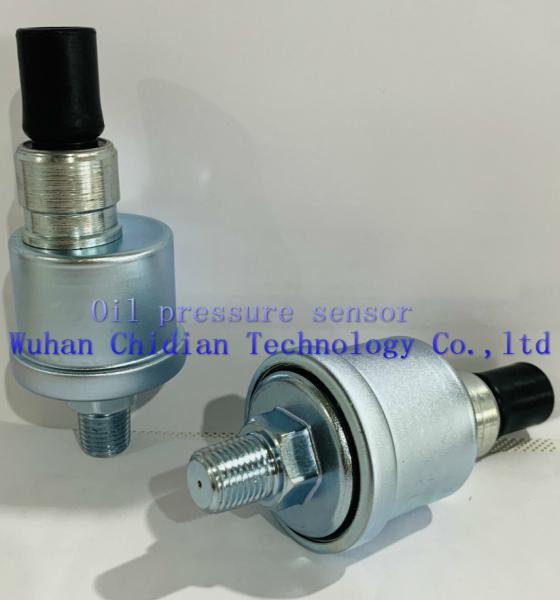

PRODUCT PICTURE :

NPT1/8 Diesel Engine Oil Pressure Sensor For Military VehiclesNPT1/8 Diesel Engine Oil Pressure Sensor For Military VehiclesNPT1/8 Diesel Engine Oil Pressure Sensor For Military Vehicles
