Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Car Engine 1/8 NPT VDO Oil Pressure Sensor Switch
Specifications
Brand Name :
WHCD
Model Number :
CDYG3-15010301
Certification :
ANSI, ISO9001
Place of Origin :
WUHAN,China
MOQ :
50PCS
Price :
$4/pc~$8/pc
Supply Ability :
T/T, Western Union, MoneyGram
Delivery Time :
20000pcs/month
Packaging Details :
25PCS/foam box , 100pcs / out carton
Color :
color znic / blue white znic
connector :
2
material :
znic treated
operation temperature :
-25°C+100°C
resistance :
10-184Ω
measuring range :
0-10bar
thread :
1/8-27NPTF,NPT 1/8,NPT1/4 ,M18*1.5,M4,M16*1.5 and etc....
Alarm :
0.08+-0.02MPa
liquid :
water and oil
protection :
dust and water proof IP65
voltage :
6-24V
Description

Engine VDO Oil Pressure Sensor Switch Replace For Original VDO 1/8 NPT Oil Pressure Sender

INTRODUCTION :

  • ✿ This oil pressure sensor is for VDO with thread type of 1/8-27NPTF, perfectly fitted for VDO models.
  • ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.
  • ✿ The oil pressure sensor can accurately measure the pressure to be measured and transmit the test results to subsequent displays or controls as appropriate.
  • ✿ The oil pressure sensor is an important part of engine, used for pressure measurement and control.
  • ✿ You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.

APPLICATION:

  • ✿ It combines the advantages of excellent anti-vibrat ion performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
  • ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.It is largely applied t o many fields, such as t he engine pipe of vehicles and ships, water processing projects,inspection and control of indust rial processes, hydraulic and pneumatic control project s, etc.
  • ✿ Protection rank: IP66

PRODUCT FEATRUES:

  • ✿ Operating voltage: 6~24V
  • ✿ Conducting power: <5W
  • ✿Operating temperature: -25 ~120℃(120℃ MAX 1H)
  • ✿ Measuring range: 0~5Bar or 0~10Bar
  • ✿ Alarm: 0.8Bar or 1.4Bar customized
  • ✿ Output signal: Standard resistance value: 10~184Ω
  • ✿ Thread fitting: NPT1/4,NPT1/8,M10,M10X1 or customized as requires.

Parameters:

operating voltage 6-24V
Conducting power <5W
Operating temperature -25 ~120℃(120℃ MAX 1H)
Measuring range 0~5Bar or 0~10Bar
Alarm 0.8Bar or 1.4Bar
Output resistance 10~184Ω
Thread fitting NPT1/4,NPT1/8,M10,M10X1 or customized as requires
Material color znic plated / Blue and white znic plated
protection rank IP66

warranty :

Within one year after shipment, except for improper installation and operations by user.

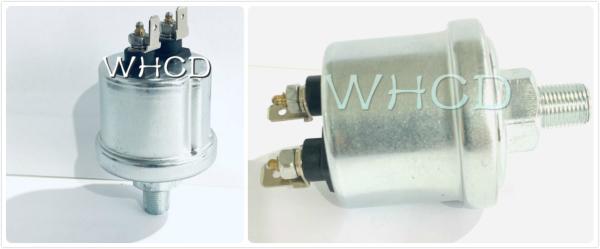

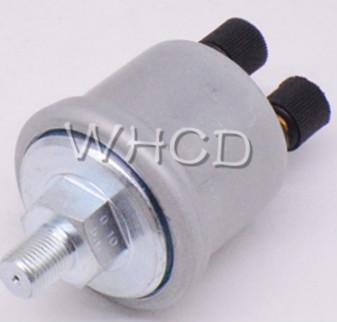

Pictures :
Car Engine 1/8 NPT VDO Oil Pressure Sensor SwitchCar Engine 1/8 NPT VDO Oil Pressure Sensor SwitchCar Engine 1/8 NPT VDO Oil Pressure Sensor SwitchCar Engine 1/8 NPT VDO Oil Pressure Sensor Switch
