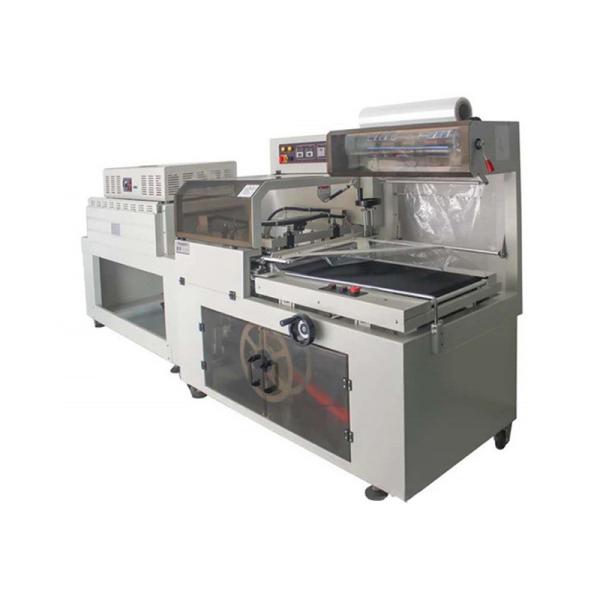

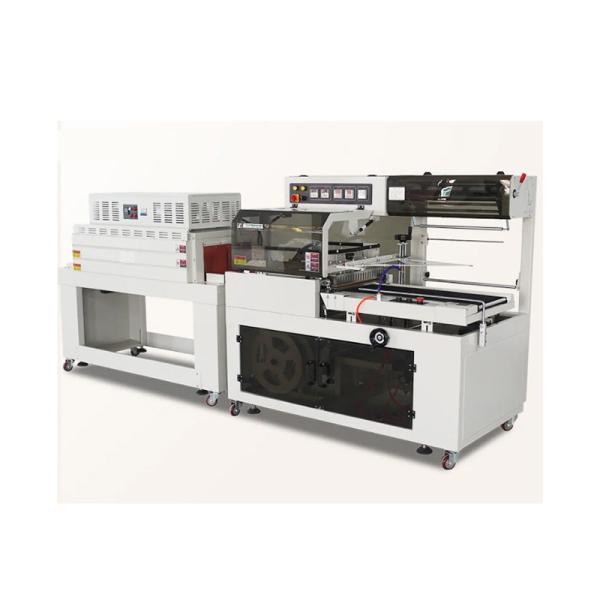

Automatic High Speed Shrink Wrapping Machine For Cartons 380V 3 Phase 13.5kw
Automatic High Speed Shrink Wrapping Machine For Cartons 380V 3 Phase 13.5kw
Automatic High Speed Shrink Wrapping Machine For Cartons 380V 3 Phase 13.5kw
Automatic High Speed Shrink Wrapping Machine For Cartons 380V 3 Phase 13.5kw
Automatic High Speed Shrink Wrapping Machine For Cartons 380V 3 Phase 13.5kw
Automatic High Speed Shrink Wrapping Machine For Cartons 380V 3 Phase 13.5kw
Specifications
Certification :
ISO9001
Place of Origin :
Hebei,China
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000PCS/Month
Delivery Time :
5-15work days
Packaging Details :
According to customer needs
Packaging Type :
Bags, Barrel, Belt, Bottles, CANS, Capsule, Cartons, case, Film, Foil, Pouch
Packaging Material :
Glass, Metal, Paper, Plastic, Wood
Selling point :
Easy to operate
Application :
Clothing, beverages, chemicals, daily necessities, food
Machine materials :
Carbon steel
Sealing type :
Fully enclosed
Type :
Thermal shrinkage
Packaging form :
Thermal shrinkage during film sealing and cutting
Maximum sealing size :
420 (mm)
Furnace temperature :
Adjustable from 1 to 300 degrees
Description

High Speed Shrink Wrapping Machine Heat Shrink Film Carton Box Packaging Machine

Introduce

A shrink packaging machine is a device that wraps products in plastic film, which shrinks tightly when heated, providing protection and enhancing its appearance.
1. Specially designed for packaging production lines of water, beverages, beer, fruit juice, dairy products, etc.
2. It has fully automatic functions such as bottle transfer and arrangement, film packaging, sealing and cutting, shrinkage, cooling and shaping.
3. Adopting internationally advanced constant temperature film thermal bonding technology, the seal is clear and safe.
4. Adopting PLC automatic program loop control, the performance is stable and reliable.
5. The original imported guide rod cylinder ensures correct operation and durability.
6. Unique heat channel, using 2 sets of centrifugal hot air circulation system, with uniform heat distribution and beautiful and safe contraction effect.
Sealing type
Fullyenclosed
Power supply
380V/50-60Hz/3phase
Maximum packaging
500(L)*400(W)*125(H)mm
Maximum speed
10-80 packs per minute
Film type
PE.POFheat shrinkable film
Max film size
630mm(width)*280mm(outer diameter)
Power consumption
13.5kw
Convevor speed
variaole
Convevor
Chain convevor belt.Roller sleeve silicone tube.Teflon mesh belt
Working height
780-850mm
Air pressure
≤0.5MPa(5 bar)
PLC
Flextronics

Features:
During the shrinkage process, it does not affect the quality of the packaging, but can shrink quickly. The packaged product can be sealed, moisture-proof, and impact resistant, suitable for tight packaging of multiple items and pallet packaging.
① Using far-infrared direct heating;
② The device is compact in size, with short preheating time and low power consumption;
③ Electronic continuously variable temperature control;
④ Shrinkage does not affect the quality of the packaged items and can shrink the packaging well;
⑤ Packaging suitable for regular or irregular items
Automatic High Speed Shrink Wrapping Machine For Cartons 380V 3 Phase 13.5kw
FAQ
Q1: What’s your advantage? Why we choose you?
A1: 25 Years of experience in shrink packing machine and R&D. We have the most professional techniques and team, according to the customer requirements, we support customized machine. We are a professional manufacturer and warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q2: What are the payment terms?
A2: T/T would be better with quick transfer and few bank fees,30% deposit, balance before shipment.
LC could also be accepted, but the procedure is complex and the fee is high.

Q3: What is the service?
A3: 7 days 24 hours online service, engineer oversea service is also available if necessary.

Q4: Warranty of the machine?
A4: One year warranty except for the consuming spare parts.

Q5: What are the delivery terms?
A5: FOB Tianjin, CNF destination port under LCL and FCL is available.

Q6: What is the delivery time?
Q6: 25 working days after the confirmation of the order.
