120kg X 2 sliding exterior doors / electric sliding door drive CE certification
120kg X 2 sliding exterior doors / electric sliding door drive CE certification
120kg X 2 sliding exterior doors / electric sliding door drive CE certification
120kg X 2 sliding exterior doors / electric sliding door drive CE certification
120kg X 2 sliding exterior doors / electric sliding door drive CE certification
120kg X 2 sliding exterior doors / electric sliding door drive CE certification
Specifications
Brand Name :
CATERLY
Model Number :
F-120W
Certification :
CE ,ISO90012008
Place of Origin :
Guangdong China
MOQ :
5 sets
Price :
USD220/set -USD250/set
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1500 sets per month
Delivery Time :
3 to 5 word days
Packaging Details :
Bubble pack + cardboard + wooden support outside
Weight of door leaf :
120KG X 1
Opening speed :
550mm/s to 750mm /s
Motor :
24V brushless dc motor
Power consumption :
70W
Door width :
600mm to 1200mm
Description

120kg X 2 sliding exterior doors / electric sliding door drive CE certification

Flexible and Simple Design

Perfect performance meet the requirement of various and suitable different door width ,door weight and functional requirement .

Driving Device

High performance brushless Motor and Digital controller
Safe and reliable operation

Two leaf automatic door weight 2x120KG

Efficiently and Economically

Convenient operation, installation and maintenance


Suitable for future development
Many years of experience in the field of automation
Make sure that you use security
Combustibility achieved ROHS and CE standard

The way of delivery
F-120W Prepare all of the components to choose from

Accessories

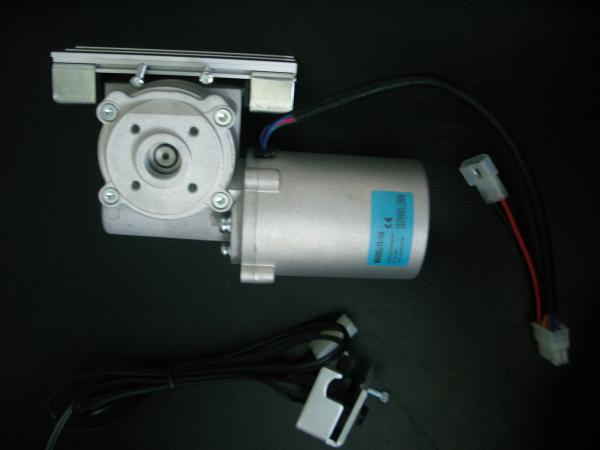

24V Brushless Motor
Microcontroller
Hanger
Rear wheel
Door Bracket
Belt
Sensor
Back-up Power

Advantage
Through the strict test of micro drive device
Suitable for all kinds of sliding door profiles
A variety of standard fittings
Accord with European standard

Door leaf parameters

Single door
open width 700 - 1500mm
Max door weight 1x120KG

Double door
Open width 600 - 1350mm
Max door weight 2 x 120kg


Technical Parameters


Surface Install
DC 24V Brushless Motor
Standard Micro-controller
Power Consumption: 70W
Voltage: AC80~250V (Regulable)
Environmental temperature:-20ºC To +50ºC
Noise : 60 decibel (Max)
Starting Speed : 450mm/sec To 750mm/sec
Starting Time: 0.5-15sec(Regulable)
Transmission System: Rack Belf 150 S8M.
Opening Door Range : Full/Half (Regulable)
PFC Power Efficiency : 0.95(in AC100V Full load)



Connecting

Electronic mechanical lock
Electric eye
Sensor
light beam safety switch
Card
Replaceable emergency back-up power

Additional device
Sensor
Backup-battery
Electronic Mechanical lock
