Digital Five Gear Switch Sliding Door Operator With Bea Radar
Digital Five Gear Switch Sliding Door Operator With Bea Radar
Digital Five Gear Switch Sliding Door Operator With Bea Radar
Digital Five Gear Switch Sliding Door Operator With Bea Radar
Specifications
Brand Name :
CATERLY
Model Number :
STD-420
Certification :
CE,SGS,ISO9001:2008 ,CQC
Place of Origin :
Guangdong China (mainland)
MOQ :
2 sets
Price :
418 usd to 461 usd
Payment Terms :
T/T, Western Union, L/C,paypal, MoneyGram
Supply Ability :
1500 sets per month
Delivery Time :
5 to 10 days after get payment
Packaging Details :
Carton or wooden packing or as per customer's request
Max. opening speed :
0.7m/s
Max. closing speed :
0.5m/s
Max. door leaf weight :
120KG (Single door leaf )
Max. passageheight :
3000mm
Door width :
700mm to 2000mm
Description

Digital Five Gear Switch Sliding Door Operator With Bea Radar

Full-featured , easy to use automatic sliding door technology - reflect the perfect combination of the safety

and accuracy .

STD420 control system is very intelligent : it can be auto-adjust drive force by leaf weight to make leaf run stably . speedy and smoothly ,specially fit for heavy transit entrance such as bank , hospital ,opera house and so on .

It is special double track can avoid leaf degress . The battery( within standard part ) can open the door even on power failure .

The operator box can tune mode and preferences . STD420 can expand to interface with many kind of sensor and control device .

Function and Characteristic

1. Install easy and fast .

2. Through operator box ,operating mode (auto,half-open , permanent open ,exit,night ) and parameter ( speed , delay close , close force , open width...) can be tuned .

3. Connectivity : beam sensor , key -switch , remote control , coded access controller , can interface to STD420 and STD420 system can drive alarm and interface to another control system .

Technical Parameters

Single leaf opening width 700mm to 2000mm
Double leaf opeing width 900mm to 3000mm
Max. weight (single leaf) 120KG
Max. weight(double leaf) 2x120KG
Body size(height x depth) 100mm x 180mm
Max. opening speed 0.7m/s
Max closing speed 0.4m/s
Closing delay time 0 - 60 second
Input 220V AC /50Hz or 24 VDC
Max. power consume 100W

Standard accessories a set system of STD420 Automatic sliding door drive


1. Center computer Control 1 Unit

2. Power Module 140W transformer( include battery) 1 Unit

3. SLM420 Motor & Gear & Encoder & Wheels 1 Unit

4. STD420 Aluminium Rail 4.2 meter

5. Synchronous Belts(wired) 5 meter

6. Deflect Pulley 1 Unit

7. T-type Aluminium Roller Carrige 4 pieces

8. 12mm Screw 4 pieces

9. Lift 4 pieces

10. Radar sensor 2 pieces

11. Stop Block 2 pieces

12. Earth Connect Parts 1 piece

13. Cable 1 piece

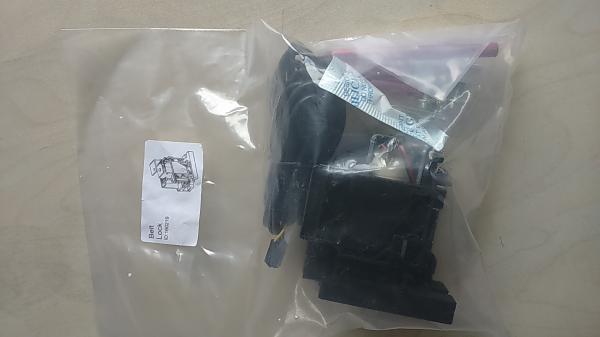

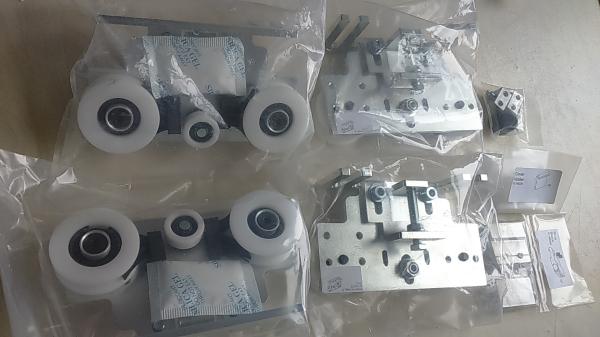

Picture for automatic sliding door drive as follow :

Digital Five Gear Switch Sliding Door Operator With Bea Radar
