Impeccable Commercial Automatic Sliding Doors Operator With Auto Adjust Drive Force

1. Install easy and fast .
2. Through operator box ,operating mode (auto,half-open , permanent open ,exit,night ) and parameter ( speed , delay close , close force , open width...) can be tuned .
3. Connectivity : beam sensor , key -switch , remote control , coded access controller , can interface to

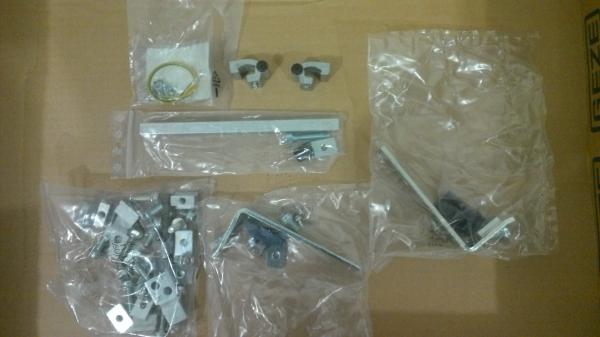

Standard accessories a set system of STD420 Automatic sliding door drive

1. Center computer Control 1 Unit

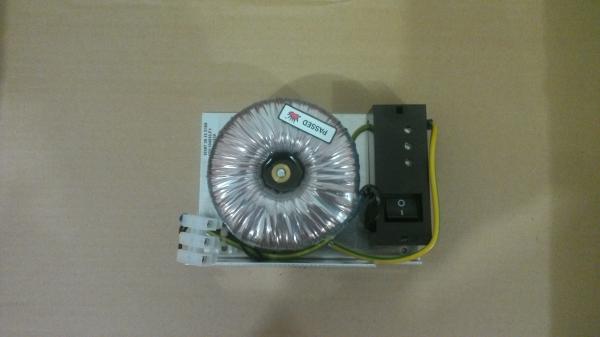

2. Power Module 140W transformer( include battery) 1 Unit

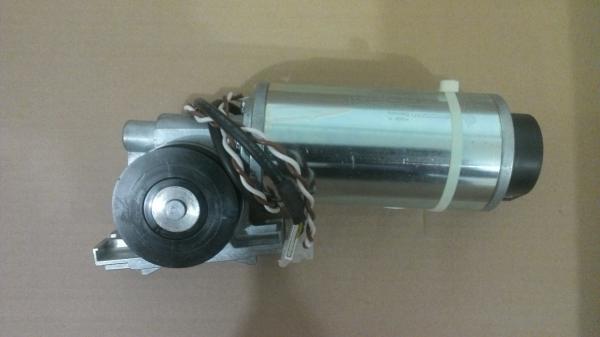

3. SLM420 Motor & Gear & Encoder & Wheels 1 Unit

4. STD420 Aluminium Rail 4.2 meter

5. Synchronous Belts(wired) 5 meter

6. Deflect Pulley 1 Unit

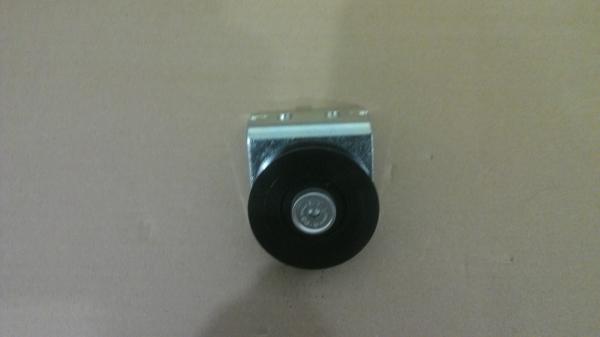

7. T-type Aluminium Roller Carrige 4 pieces

8. 12mm Screw 4 pieces

9. Lift 4 pieces

10. Radar sensor 2 pieces

11. Stop Block 2 pieces

12. Earth Connect Parts 1 piece

13. Cable 1 piece

STD420 control system is very intelligent : it can be auto-adjust drive force by leaf weight to make leaf run stably . speedy and smoothly ,specially fit for heavy transit entrance such as bank , hospital ,opera house and so on .

It is special double track can avoid leaf degress . The battery( within standard part ) can open the door even on power failure .

The operator box can tune mode and preferences . STD420 can expand to interface with many kind of sensor and control device .

Full-featured , easy to use automatic sliding door technology - reflect the perfect combination of the safety
and accuracy .

STD420 control system is very intelligent : it can be auto-adjust drive force by leaf weight to make leaf run stably . speedy and smoothly ,specially fit for heavy transit entrance such as bank , hospital ,opera house and so on .


The operator box can tune mode and preferences . STD420 can expand to interface with many kind of sensor and control device .


Technical Parameters

Product picture :
