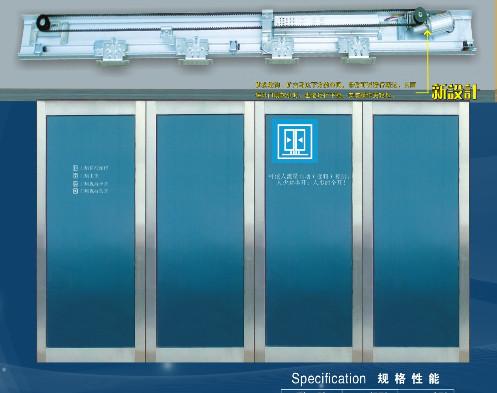

Fashionable Slender Portal Powered Sliding Doors For Office Building With Radar Sensor
Fashionable Slender Portal Powered Sliding Doors For Office Building With Radar Sensor
Fashionable Slender Portal Powered Sliding Doors For Office Building With Radar Sensor
Fashionable Slender Portal Powered Sliding Doors For Office Building With Radar Sensor
Specifications
Brand Name :
CATERLY
Model Number :
F-120W
Certification :
CE,SGS,ISO9001:2008 ,CQC
Place of Origin :
Guangdong China (mainland)
MOQ :
5 sets
Price :
250 usd to 350 usd
Payment Terms :
T/T, Western Union, L/C,paypal, MoneyGram
Supply Ability :
1500 sets per month
Delivery Time :
3 to 5 days after get payment
Packaging Details :
Carton or wooden packing or as per customer's request
Input voltage :
AC80V to AC250V
Opening speed :
450mm/s to 750mm/s
Closing speed :
450mm/s to 750mm/s
Power consumption :
70W
Guarantee :
2 year
Description

Fashionable Slender Portal Powered Sliding Doors For Office Building With Radar Sensor

Intelligence The sliding operator is controlled by micro computer chips. It is easy to install and use. The operator can automatically adapt itself to different door weight.

Safety The sliding operator have the alarm system which can prevent people from nipping, so it is safe for users. With motor self lock function, the operator can lock the door without mechanical locks. The door leaf will automatically turn back if it touches any obstacles.

Reliability Thanks to professional mechanic design and high-efficiency DC brushless motor, the sliding operator can work very well with low noise for a long time. With the help of advanced synchronous belt and perfect design of power supply circuit , the door moves very stably.

Energy Saving With the help of semi-open function, so this can help to keep the temperature and humidity inside the room and to minimize the costs of the air conditioner as well.

Convenience All the adjustments can be implemented with adjust controller. It is facilitate to operate the operator. Open and close smoothly with high efficiency. Fast installation and easy replacement for assembly parts.

Specification

Single Drive System/Motor Double Drive System/Motor
Weight of gate Single/Bi-part 1X120KG 2X120KG
Width of gate Single/Bi-part 700-1500MM 650-1350MM
Master Controller 32 digital microprocessor 32 digital microprocessor
Brush motor 70W 70W
Opening speed 450-750mm/s 450-750mm/s
Closeing speed 450-750mm/s 450-750mm/s
Max open strength 150N 285N
Hold Open Time/Lock 0-10S/30s 0-10S/30s
Height of the rail 18CM 18CM
Deepth of the rail 16CM 16CM
Power Supply AC80V-250V 50/60HZ AC80V-250V 50/60HZ
Temp -20ºC to +50ºC -20ºC to +50ºC
Power Consumption around 70W around 70W

Emergency Functions

Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction

Additional

Low noise desigh (<40db)

One million times of tests passed

Warranty: 18months

Packaging & Delivery

Packaging Detail: Carton&Bubble Bag
Delivery Detail: Less than 7 days IF Quantity less 50sets

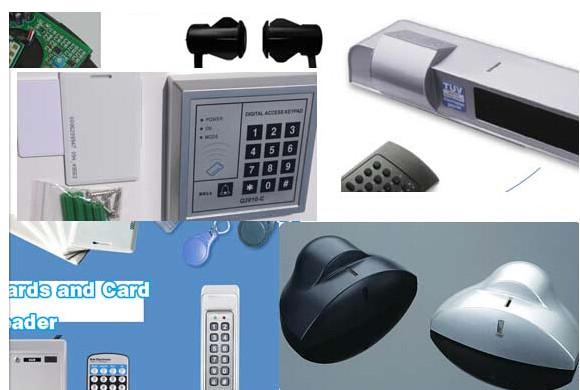

Optional Parts

Motion Sensor

Lock latch

Battery

Beam safety photocell

Fashionable Slender Portal Powered Sliding Doors For Office Building With Radar Sensor
