Dsd Aluminum Framed Commercial Automatic Sliding Doors Opener With Push Button Switch
Dsd Aluminum Framed Commercial Automatic Sliding Doors Opener With Push Button Switch
Dsd Aluminum Framed Commercial Automatic Sliding Doors Opener With Push Button Switch
Dsd Aluminum Framed Commercial Automatic Sliding Doors Opener With Push Button Switch
Specifications
Brand Name :
CATERLY
Model Number :
F-120W
Certification :
CE,SGS,ISO9001:2008 ,CQC
Place of Origin :
Guangdong China (mainland)
MOQ :
5 sets
Price :
250 usd to 350 usd
Payment Terms :
T/T, Western Union, L/C,paypal, MoneyGram,
Supply Ability :
1500 sets per month
Delivery Time :
3 to 5 days after get payment
Packaging Details :
Carton or wooden packing or as per customer's request
Input voltage :
AC80V to AC250V
Opening speed :
550mm/s to 750mm/s
Closing speed :
550mm/s to 750mm/s
Power consumption :
70 W
Guarantee :
2 years
Description

Dsd Aluminum Framed Commercial Automatic Sliding Doors Opener With Push Button Switch

Specifications
Automatic sliding glass door
1. Function Adjustable
2. BEDIS control panel
3. Reliable electromagnetism lock
4. CE certificated

Compact drive unit with electronically-controlled door operation,maintenance-free with high performance
Installed in protective housing, with automatic adjustment for optimum dynamic operating performance of door
Obstacle detection with automatic return
mechanism
-Dynamic power limitation
-LED-type function and error indicators
-Prioritised fulfilment of operating commands
-Weight and path measurement
-Testing of safety and security elements
-End-point positioning
BEDIS control panel
All the functions can be identified and set via BEDIS control panel.
The numbering of the LED's on the front plate corresponds o their binartvalue.
The softswitch numberresp.
The errornumber is obtained by adding the numbers next to the LED' which are lit.



10 modes of Caterly automatic door operator
1.Manual
2.Permanent
3.Automatic
4.Partial open
5.Exit only
6.Locking
7.Adjustable door opening speed
8.Adjustable door closing speed
9.Adjustable door opening width
10.Adjustable pause time


Emergency Functions

Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction



Technical Parameters :


Door parameter
F-120W		 Basic module Y/N
1- panel sliding door
Modular design Y
- Clear passage width LW 700-3000mm Microprocessor-controlled function programs
- Door panel weight, max 1X120kg - Off Y
2- panel sliding door
- Automatic Y
- Clear passage width LW 800-3000mm - Permanent open Y
- Door panel weight, max 2X120kg - Partial opening Y


- Exit only Y
Technical data
- Release outside Y
Height 100mm Connections for
Overall depth 180mm - electro-mechanical lock Y
Opening & closing force,max 150N - light barriers Y
Opening speed 10-70cm/s Adjustment of all basic parameters Y
Closing speed 10-50cm/s 24V output for external loads Y
Hold-open time 0-10s Read-out error memory with error codes Y
Mains voltage, frequency 230V,50/60 Hz DCW bus interface Y

Power consumption
70W		 Rechargeable battrey pack for emergency operation Y


Packaging & Delivery


Packaging Details:		 Carton or wooden packing
Delivery Detail: 5-7 days after receiving customers' payment

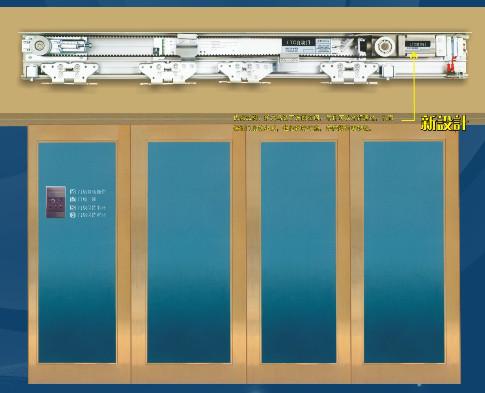

Product picture

Dsd Aluminum Framed Commercial Automatic Sliding Doors Opener With Push Button Switch
