Durable Commercial Automatic Sliding Door Mechanism With 2.1m 4.2m 3m 6m Track
Durable Commercial Automatic Sliding Door Mechanism With 2.1m 4.2m 3m 6m Track
Durable Commercial Automatic Sliding Door Mechanism With 2.1m 4.2m 3m 6m Track
Durable Commercial Automatic Sliding Door Mechanism With 2.1m 4.2m 3m 6m Track
Specifications
Brand Name :
CATERLY
Model Number :
F-120W
Certification :
CE,SGS,ISO9001:2008 ,CQC
Place of Origin :
Guangdong China (mainland)
MOQ :
5 sets
Price :
250 usd to 350 usd
Payment Terms :
T/T, Western Union, L/C,paypal, MoneyGram
Supply Ability :
1500 sets per month
Delivery Time :
3 to 5 days after get payment
Packaging Details :
Carton or wooden packing or as per customer's request
Input Voltage :
AC90 to AC 250V
Opening Speed :
550mm/S to 750mm/S
Closing Speed :
550-750mm/S(Adjustabl)
Power Consumption :
70W
Guarantee :
2 year
Description

Durable Commercial Automatic Sliding Door Mechanism With 2.1m 4.2m 3m 6m Track

Specifications

Rated voltage: DC24V Rate power: 75W Rated rotate speed: 3,500rpm
Rated torsion: 0.19n.m Rated current: 4A Reduction ratio: 1: 15
Short-term overload output power: 80W Short-time overload input current: 5A Short-time overload output torsion: 0.255n.m
Output rotate speed: 200rpm Output torsion: 2.8n.m Maximum torsion: 3.8n.m



(1) Advanced brushless DC motor is installed with smart Hall software to realize self-study
(2) Brushless DC motor and worm reducer, high efficiency, big moment force and long service life
(3) Precise manufacturing process and worm output transmission greatly reduce the noise
(4) Motor has the function of self-lock, in case of no signal, the strong locking force can make the door keep in locking state (power supplying state)



Our advantage and features:
1. More than 10 sets of advanced machines with more than ten years domestic trade experience and international trade experience.
2. Manufacture and supply good quality automatic doors
3. With ISO 9001 Certification and many others certifications

4. Excellent DC brushless motor , high wear-resistant qualities wheels and reasonable structure design makes it more stable, quiet, longer life
5 .Our Service system is perfect


TECHNICAL PARAMETERS:


Door type		 single door double door
weight of door <=120kg <=120kg*2
opening direction optional optional
Door Width 700-1300mm 600-1250mm
power AC 80-250V 50-60HZ
open time 0.5-10S (adjustable)
opening speed <=450mm/s <=550mm/s
closing speed <=400mm/s <=400mm/s
manual force <=45N <=45N
motor DC 24V 55W brushless motor
controller 8 digital Micro-computer processing controller
temperature -20~+50°C
humidity 35-85%RH/No dew 35-


AUTOMATIC ALUMINIUM DOOR COMPONENTS INCLUDING


Components		 Quantity Components Quantity
Control panel 1 Receiver 1
Motor gear box assembly 1 Return Pulley 1
Microwave sensor 2 Terminal input assembly 1
Tooth Belt 1*7m Power switch 1
End stop 3 Hanger roller bracket 2
Remote control 2 Belt bracket link assembly 2
Device for yaw checking 1 Microwave sensor 2
Transmission rail and cover 2*2.1m

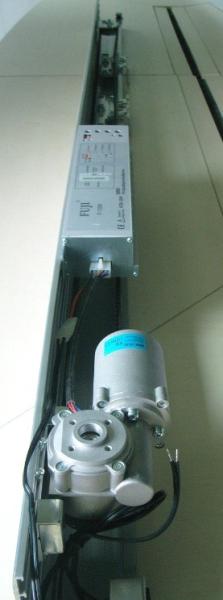

F-120W automatic sliding door Cover and Rail
