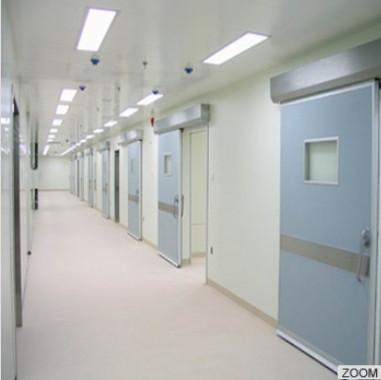

120W 150KG Surgical Automatic Airtight Door , Mircro-controller gas tight door
120W 150KG Surgical Automatic Airtight Door , Mircro-controller gas tight door
Specifications
Brand Name :
Caterly
Model Number :
AD-2
Certification :
CE,ISO9001,SGS,CQC
Place of Origin :
Guangdong China
MOQ :
1 Sets
Price :
USD 1,000/Set to USD2,500/Set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000Set per month
Delivery Time :
10-25 work days
Packaging Details :
Bubble bag and cardboard boxes and wooden case
Properties :
The Basis of Surgical Instruments
Material :
Stainless Steel
Type :
Sliding Doors,Automatic Door Operators
Open Style :
Automatic
Operating Voltage :
DC 24V
Description

Power Consumption 120W Door weight 150KG Surgical Automatic Airtight Door

Technical Specification

Door Weight

200kg (Single)

Max.Opening

1500(w)* 2200(h)

Opening Speed

200-500mm/s

Closing Speed

200-500mm/s

Supply Voltage

AC 220V ± 10%,50Hz

Power Consumption

120W

Manual Opening Force

below 110N

Opening Method

Feet Sensor

Closing Method

Automatic

Specifications

Airtight door
(1) Brushless motor DC24V
(2) Mircro-controller
(3) Easily install and operate
(4) Competitive price

1) Rubber lining sealing technology combined with groove on the guide rail enables the door completely sealed when the door closed;

2) Special door body location technology. Semicircular surface beam on the ground matches with the groove at the bottom of door leaf,

which stop the door from swing and make sure it moves stable and smooth;

3) The door body decorated with matte stainless steel or spray surface, and on the middle and both sides with sealing stripes to ensure the hermetic effect.

The dynamic beam is made of aluminum alloy. The transmission structure is reasonable and reliable with life span of over 1 million times. The body of the door adopts foaming techniques and the surface is covered with large-size inferior smooth stainless steel or aluminum. Various colors of spray coating are available. Sealing strips are embedded at two sides and the middle seam, which meets the sanitary requirements in hospitals. The mobile door moves smoothly; the special controller and foot detection switch have excellent performance. The automatic door can open and close with merely a foot of medical personnel into the switch box. The switch can also be handled by hands.
