Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
Specifications
Brand Name :
CATERLY
Model Number :
H-18
Certification :
CE,ISO9001,SGS,CQC
Place of Origin :
Taiwan China
MOQ :
1 Sets
Price :
USD1370/Set to USD3225/Set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500Set per month
Delivery Time :
3-7 work days
Packaging Details :
Bubble bag and cardboard boxes and wooden case
Door Type :
Single And Double heavy duty door
Material :
Stainless steel and aluminum alloy
Type :
Automatic Heavy Duty Door Operators
Description

Max Weight 1000KG/Leaf Professional H-18 High Quality Worm Gear Heavy duty door

Our Services

As a professional automatic door manufactuer,we also sell accessories of automatic doors to worlwide;

We design and manufacture automatic doors to our customers.

We design and manufacture automatic doors as following:

1. Automatic sliding door

2. Automatic curved door

4. Factory automatic door

5. Hospital Air-tight automatic door

6. 2 wings luxury automatic revolving door

7. 3-4 wings automatic revolving door with showcase

8. 3-4 manual revolving door

9. Crystal revolving door

10. Automatic barrier door

We sell automatic door parts as following:

Automatic sliding door operator; Automatic revolving door operator; Automatic door movement sensor,;Automatic door switch; Automatic door radar; Automatic curved door operator.

Specifications

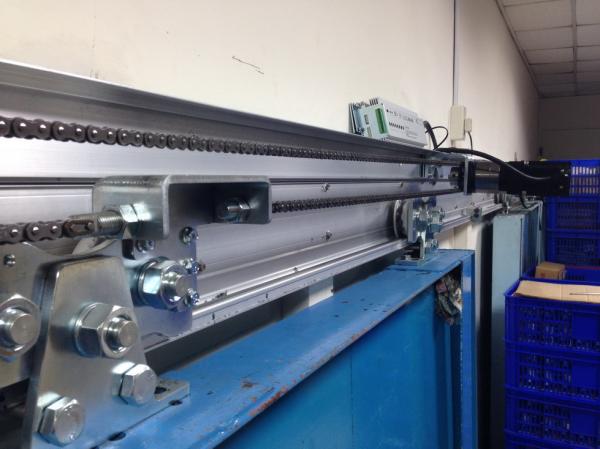

1.Heavy Duty Automatic Sliding Door Operator
2.Max Weight:1000KG/Leaf
3.CE Certifcate

Trade term

EXW, FOB, CIF

Payment

T/T, Western Union

MOQ

1 pcs

Package

Exporting carton, flycase, wooden case

Leading time

Sample order: 3-9 days

Big order: 4-15 days

OEM

OEM is acceptable

Warranty

2 year

After service

If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what’s problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 2 year.

Standard

Door type

Single door

Double door

Door weight

Max 1000KG

Max 2*900KG

Clear passenger width

DW=500mm~2500mm

DW=500mm~2500mm

Instalation stype

Surface mounting

Power voltage and Frequency

AC80V~250V 50~60Hz

Opening speed

100~500mm/s(Adjustable)

Closing speed

100~500mm/s(Adjustable)

Slow speed

30~100mm/s(Adjustable)

Opening time

0~9s(Adjustable)

Close force

200N

Manual force

<100N

Power consumption

<250W

Noise

<=50db

Operating temperature

-20°C~+50°C

Professional Worm Gear Heavy duty door Operator , Max. Weight 1000KG/Leaf
