Safety Certificate URS ISO9001,CE Light Worm Automatic Sliding Door

Sliding Glass Door Structural Principle

(1) Door Plank:
1. Generally use coreboard when the size is small, use frame structure door plank when the size is large.
2. choose different thickness plank according to the hole size
3. Filling material generally use thermal insulation material like polyurethane(PU), foaming glass cotton material, and so on.

(2) Rail:
Up-Hanging rail: galvanized plank moulded in professional rolling mill machine, cutting off after straightened, passivate notch after moulded.
Load-bearing rail: land wheel processed by excellent carbon structural steel.

(3) Guide Wheel: closed bearings in the wheel in order to prevent dust from lubricating.
(4) Seal: sealing strip's material adopt EPDM or brush, good springback parameters, good weather resistance, low temperature resistant, flat smooth surface.

Automatic Door with CE Certificate

Automatic Door Operator Advantage:

6 High Technologies (Patent)

1. Soft Start

We adopt slow-starting technology, the motor start slowly, then speed up with frequency conversion in the base of the door are smooth.

2. Automatic Search

When the door knock someone or object, it will rebound swiftly, and then search whether it is off slowly.

3. Automatic Protect

When search 3-6 times, and insure the person or object still there, the door machine will stop operating.

4. Automatic reset

After insure everything is safe, no need to close the power, only push the door to opening position, the door will recover operating automatically

5. Motor lock

Common automatic door locking force >200N

But ours is >350N (equals strong electromagnetism lock)

6. Not increase the pressure when it is at leisure, high Efficiency and energy saving

Power consumption when work: 220v 1.35A

Power consumption when at leisure: 220V 0.09A

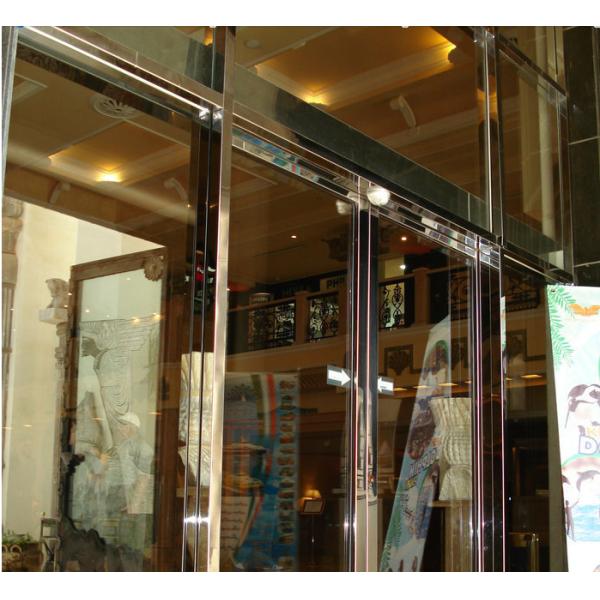

Sliding Glass Door Picture

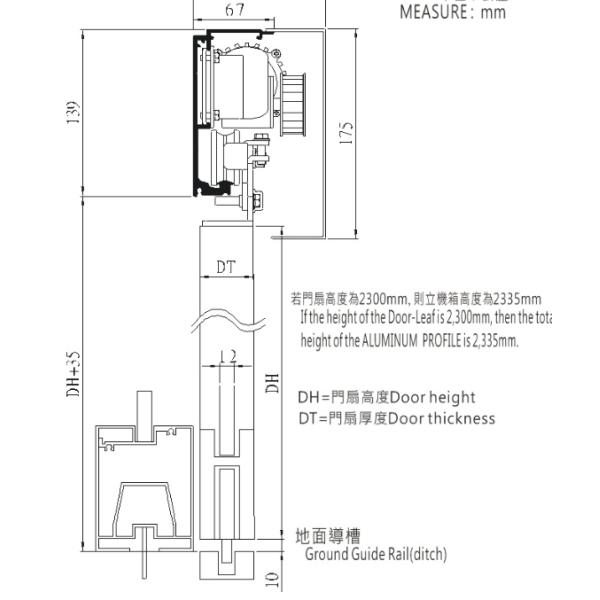

Drawing

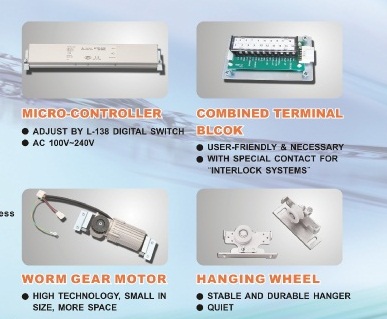

Accessories Picture
