Special hotel door Power Source 80V to 220V 50/60Hz Automatic Curved Sliding Door

The Revolving door and sliding door in one, designed graceful and concisely, that’s the CATERLY automatic curved sliding door with the Model TH-R9.

TH-R9 is becoming a more and more popular option due to its outstanding performances, such as various appearance, multi-function, energy-savings and environmentally friendly, it was warmly welcomed by Modern buildings from all around the world.

Safety Features:

1. Interlock

Interlock refers to the status of one door leaf being locked while the other remains open during the curved sliding door’s motion.

2. Self Test

When the automatic door begins to work, it establishes the self-learning process and calculates the optimum open/close speed, acceleration /deceleration time, low speed distance, and other features. This function starts automatically when the door is powered on, ensurmg the door to operate in the optimal state.

3. Simple Operation &Troubleshoot System

Invented by CATERLY , the control panel is an innovation in the world of automatic door control systems. The seven modes can be easily switched through the control panel. This panel can also be used to make adjustments to the operation parameters, while showing any possible error codes through a display.

4. EMG solution

When power supply fail, the large capacity UPS can ensure at least 30 minutes normal operation of the door ,make people safe all the time .

5. Mobile Phone/Internet Monitoring

CATERLY’s unique control software can be used to facilitate the management of the door through mobile phones or the internet. With this feature, the operator could monitor the operation status and alarms of the door.

Technical Data:

Power Source : 220V ±10%, 50/60Hz

Main Fuse : 2A

Rated Power : 150W (Double Leaves), 75W (Single Leaf)

Maximum Drive Power : 150N

Ambient Temperature : -15 ~ 50 degree

Opening Speed : 0.4~0.7m/s

Closing Speed : 0.3~0.6m/s

Key Components:

1. Drive unit

2. Motor decelerator

3. Control unit

4. Detecting radar - BEA, Microwave/Infrared

5. Control panel

6. Curved glass - YAOPI Laminated glass

7. Aluminum frame profile

8. Electro-mechanical lock

9. Back-up battery

10. Key switch

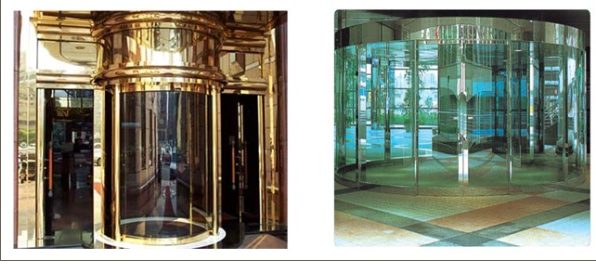

Products Image
