Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Adjustable speed glass / wooden door double action floor spring Closer for 130KG
Specifications
Brand Name :
CATERLY
Model Number :
LD130
Certification :
CE,ISO9001,SGS,CQC
Place of Origin :
Guangdong China (Mainland)
MOQ :
20 Sets
Price :
USD 18.8/Set to USD19.8/Set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000Set per month
Delivery Time :
10-25 work days
Packaging Details :
Air bubble film+wood crates; carton+plywood; accept customized package
Type :
Door Closers
Material :
Iron
Description

Packaging & Delivery

Packaging Detail: 1 pcs in 1 box, 4 boxes in one carton
Delivery Detail: 10-25 days

Specifications

1. Max door weight:130kg.
2. Two speeds adjustable.
3. 500000cycles tested.

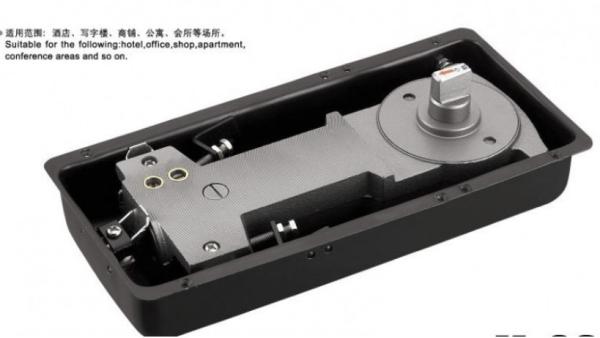

Floor Spring features:

l Applicable for glass doors, wooden doors and the glass doors of metal frame and wooden frame.

l Floor spring comply to EN 1154 and GB standard , and fire-rated EN1634 standard.

l Maximum 500000 cycles tested without damage or maximum 7 years guarantee.

l Double ways opening with smoothly movement, hold-open at 90°.

l Closing speed and latching speed adjustable, latching point accurately at 0°

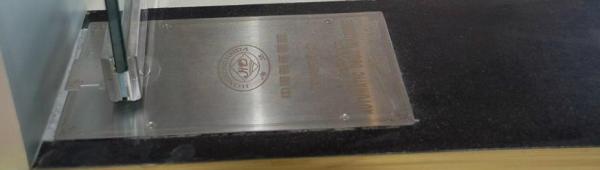

l Stainless steel cover plate, satin or mirror surface available.

l High quality casting iron floor spring body with 2 layers anti-rust coating.

l All spindle types available for different countries.

Model#: LD-130
Applicable Standard EN#3
Closing Force(N.m)
Maximum Door Width(mm) 1250mm
Maximum Door Weight(kg) 130kg
Maximum Open Angle 116°
Hold-Open Angle 90°
Closing Speed Adjustment Speed 1 0°-20°
Speed 2 20°-90°
Application Temperature -30°C-55°C

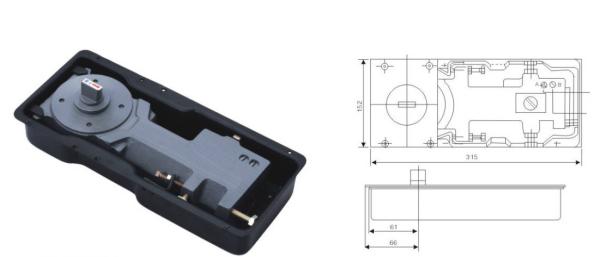

Cement Box Size(mm) Length 298
Width 146
Height 48
Product Weight(kg) 6.0
Packing Quantity(sets) 4
Packing Carton Size(mm) Length
Width
Height
Carton Gross Weight 25
WARRANTY time 5 years
