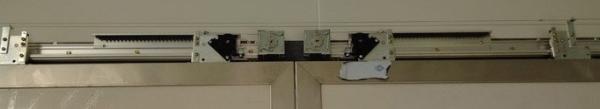

1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times
1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times
1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times
1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times
1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times
1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times
Specifications
Brand Name :
Caterly
Model Number :
906-A
Certification :
CE,ISO9001:2008
Place of Origin :
Taiwan , China
MOQ :
15sets
Price :
USD90.00/set to USD 120 .00/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
3,000 Sets per Month
Delivery Time :
3-7 work days
Packaging Details :
foam and cardboard cartons and wooden pallet
Input voltage :
110V to 240V
Power :
25W DC24V
Capacity :
15KG to 80KG
Door width :
Up to 2600mm
Operating temperature :
-20C to + 55C
Description

Door width 1200 mm to 1600mm ,More than 1 million times Semi Automatic Door

Feature

1. No motor no power,door close

2. Single or Bi-part open doors with super silent movement


3. Durable spring roll

Function Programs

self close

stay open

Additional

Low noise desigh (<10db)

One million times of tests passed

Warranty: 24months

Standard Configuration

1. Aluminume Rail

2. Hanger rollers
3. Stoper
4. Brake Rack
5. Spring roll
6. Floor guide
7. Hold open clip

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 4days

SPECIFICATIONS
Model 906-A 906-B
Door Weight 15 ~ 50kg 50 ~ 80kg
Door Width (Max.) ~ 900 mm ~ 1,200mm
Rail Length L = 2,200mm / 2,500mm L = 2,500mm / 2,800mm
Controlling System Air Damper type Air Damper type

I. Install aluminum rail horizontally .

2. Install roller on to top of the door .

a) use fixing plate for timber door ,aluminum framed glass door .

b) use aluminum hanger for frameless glass door .

3. Install spring by 2 screws 3/16-24x5/8" adjust spring tension

for proper closing speed . Each adjustment no more than 1/2 turn .

4. Install Hydraulic Brake by 1 screw 1/4-24x3/8" per drawing 4 .

Gear of Hydraulic Brake is designed with a one way bearing .

The unit is present as RH opening when ex-factory .Gear must be reversely assembled for LH opening .

5. Adjust Hydraulic Brake for required closing speed .

6. For extra heavy door , raise open end 5mm highen than "close end " for easier closing .1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times

1200mm-1600mm Width Semi Automatic Door More Than 1 Million Times
