Auto - Reversing Residential Automatic Sliding Doors Big Power Automatic Glass Sliding Door
Auto - Reversing Residential Automatic Sliding Doors Big Power Automatic Glass Sliding Door
Auto - Reversing Residential Automatic Sliding Doors Big Power Automatic Glass Sliding Door
Auto - Reversing Residential Automatic Sliding Doors Big Power Automatic Glass Sliding Door
Specifications
Brand Name :
Caterly
Model Number :
D-H
Certification :
CE,ISO9001:2008
Place of Origin :
Guangdong , China
MOQ :
5 sets
Price :
USD200.00/set to USD 450 .00/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
3,000 Sets per Month
Delivery Time :
3-7 work days
Packaging Details :
foam and cardboard cartons and wooden pallet
Input voltage :
110V to 240V
power consumption :
25W
Max. opening width :
600mm to 900mm
Max. opeing speed :
15mm/s to 45mm/s
Max. closing speed :
15mm/s to 45mm/s
Description

Low noise , big power Residential Automatic Sliding Doors with CE

Intelligence,

a) Controlled by the microcomputer digital chips , giving the control unit multiple programmable modes including provision to interface with builidng security system, monitoring the doors position status,built-in UPS,etc

b) The microprocessor operating parameters can be adjusted to accommodate various climatic conditions and can ajust the speed ,brake ,position etc.

Safety,

a) safety beam sensor protection

b) Auto-reversing when confronting with obstacle

c) UPS when power fails, it can let the door open in urgent situations or you can open it by hand

d) In case of emergency ,the door can keep open and stay there to aid escape

e) The microcontroller also provide the interface for alarming system ,safety system ,etc

f) Fuse protection at 1A, 250V

Reliability,

Thanks to professional mechanic design and high-efficiency DC brushless motor, the sliding operator can work very well with low noise for a long time. With the help of advanced synchronous belt and perfect design of power supply circuit , the door moves very stably.

Energy Saving,

With half open function and the remote control , you can control the door opening width .so this can help to keep the temperature and humidity inside the room and to minimize the costs of the air conditioner as well

Specifications

Auto sliding door operator

a) 24V,bruhthless motor
b) hold 30kg x 2
c) Motion radar
d) Commerical use,photocell protection

Automation,

Control unit 8 bit-slice microcomputer system
Transmission Toothed belt and motor drive
Use frequency Continuous
Opening speed 15-50cm/s (adjustable)
Closing speed 10-45cm/s (adjustable)
Braking speed 3-10cm/s(adjustable)
Open time 0-8 s
Braking distance adjustable
Manual force less then 42N
Door weight 1 x 60kg, 2 x 30kg
Motor Bruthless, China-made
Program remote control,digital display

Components

Retro-fit kit of automatic sliding door

1

Motor & Gearbox

1pcs

China-made 24V,25W ,DC bruthless motor

2

Microcontroller

1pc

8 bit Microchip chip

3

Radar

2pcs

Bea radar

4

Learning code remote controller

1set

Hold-open,lock,exit only, half-open

5

Carriage

4pcs

2 running wheel

6

Tooth belt

1pc

8m, fiberglass tensile elements, nylon surface

7

Belt clamp

2pcs

8

Idle pulley

1pc

Aluminum alloy

9

Stopper

2pcs

Aluminum alloy

10

Connection termial

1pc

For 110V to 220V power ,and outside sensor connection

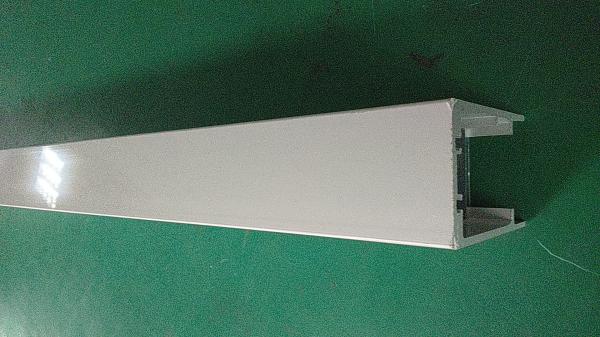

Profile

1

Track

1pc

3mm thickenss, Anodize, height 125mm, depth 100mm,length 4200mm

2

Cover

1pc

170mm height,anodized

Options

1

Safety beam sensor

1set

China-,made

2

Electro-mechanical lock

1set

12V,time delay

3

Emergency battery

1set

12V,7Ah,contiunously working half an hours

4

Control panels

1set

LCD display, key swtich,5 program adjust

5

Floor guide

2pcs

For frame and frameless door

6

Glass clamp

2pcs

1m length, fit to 10mm,12mm glass

Household automatic door machine

Auto - Reversing Residential Automatic Sliding Doors Big Power Automatic Glass Sliding Door

Sectional View

Auto - Reversing Residential Automatic Sliding Doors Big Power Automatic Glass Sliding Door
