Specifications
Brand Name :
Caterly
Model Number :
SLM-420
Certification :
CE,ISO9001
Place of Origin :
Guangdong , China
MOQ :
5 sets
Price :
USD725.00/set to USD 900 .00/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
3,000 Sets per Month
Delivery Time :
3-10 work days
Packaging Details :
foam and cardboard cartons and wooden frame
Max. Door Weight :
120KGS
Door width :
700mm to 3000mm
Certificate :
CE , ISO9001
Operating Voltage :
DC 24V
Input Voltage :
AC 220V ,50Hz~60Hz
Description

Commercial automatic sliding doors , automatic door lock system

Usually automatic door control system body height is over 10cm .

Its slim body give architeet more flexibility watch from front , its height can almost be ignored .

Furthermore , it integrate powerful drive and convenient function for easy install and use .

Model Number SLM420-S/ Single leaf SLM420-D/ Double leaves
Door Weight 120kg/ Single leaf 120kg/ 2 leaves
Door Width 700~2000mm 900~3000mm
Input Voltage 220V ± 10%, 50 HZ
Operating Voltage DC 24V
Electronic Controller Microprocessor Controller/
Motor DC24V 300W Brushless Motor/ Dimensio
Safety Detection Automatic stop/ reverse during opening or closing
Optional Devices Microwave Sensor/ Keypad Systems/ batteries/ Functional Switch/ Remote Control/ Magnetic Lock etc.
Maximum Noise Below 55dB
Railing Type High Strength Aluminum Alloy Rail
Fixed Pulley Hanging Wheel Sets/ Convenient Level Adjustment/ Automatic Alignment/ Easy Installation
Working Temperature -25°C~+55°C

Specialty

1, C-type rail :can support more weight and combine with brush to resist dust and noise .

2, Powerful and special designed brush motor : slim and powerful ( up to 1350Ncm )

3, Powerful transformer with low size and lower work temperature

4, Self lubricate POM roller , wearable and noise free

5, One leaf are hanged by two runner ( total of 8 bearing rollers ) leaf weight distribute equably

6, Steel wired PU tooth belt : lower distortion , fit for hight speed run and stop .

7, Bi-stable lock :the two state ( lock/unlock) are hold even when power loss , in emergency situation

the lock can be unlocked by hand inside or by key switch outside (battery active when no main power )

8, Self-learning made install easy ! no other program device needed !

9, Pre-installed profile made it easy for install rail

10. Anti crash force are tunable

Components

1. Rail 9. Breaker
2. Transformer
3. Motor 11. Service cover holder
4. Tail wheel 12. End stop
5. Basic control module 13. Door bracket
6. Runner 14. Belt connection
7. NiHM battery 15. Belt tensioning device
8. Side panel

Optional equipment

Electro-mechanical lock(bistable)
Manual release of electro-mechanical lock
Light barriers
Backup battery pack

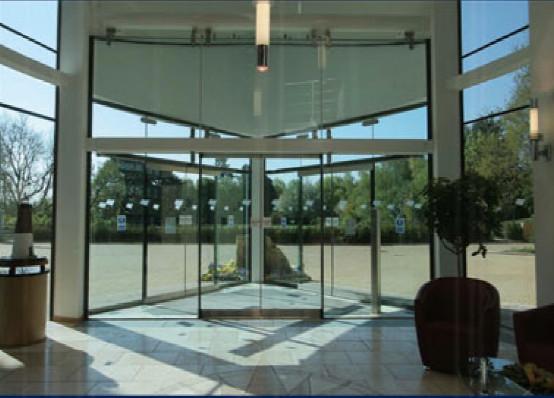

Automatic sliding door Photos

Commercial automatic sliding doors , automatic door lock system

Machine drawing

Commercial automatic sliding doors , automatic door lock system

package photos

Commercial automatic sliding doors , automatic door lock system

Commercial automatic sliding doors , automatic door lock system
