200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval
200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval
200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval
200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval
Specifications
Brand Name :
Caterly
Model Number :
PWR420
Certification :
CE,ISO9001
Place of Origin :
Guangdong , China
MOQ :
5 sets
Price :
USD725.00/set to USD 900 .00/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
3,000 Sets per Month
Delivery Time :
3-10 work days
Packaging Details :
foam and cardboard cartons and wooden frame
Motor :
original dunkermotor
Radar :
BEA radar sensor
CE certification :
yes
Hold :
200KG
Power :
200W
Description

200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval

Specifications

sliding doors
CE&ISO9001certificate
15years experience in local market
3years' warranty
manufacture of automatic door

*THIS QUOTATION NOT INCLUDE TRANSPORT FEE.

1) MIN.ORDER IS 20 SETS.SAMPLE CHARGE 50 USD MORE.

2) PAYMENT: 30% T/T TOTAL AMOUNT OF THE ORDER AS DEPOSIT,THE BALANCE PAY BEFORE DELIVERY.

3) DELIVER TIME: 10 DAYS.

4) PACKAGE: CARTON&FOAM PACKING.

PWR420 Series control system total height is only 7 cm ! State- of - the - art !

Usually automatic door control system body height is over 10cm .

Its slim body give architeet more flexibility watch from front , its height can almost be ignored .

Furthermore , it integrate powerful drive and convenient function for easy install and use .

Model Number

PWR420-S/ Single leaf

PWR420-D/ Double leaves

Door Weight

200kg/ Single leaf

200kg/ 2 leaves

Door Width

700~2000mm

900~3000mm

Input Voltage

220V ± 10%, 50 HZ

Operating Voltage

DC 24V

Electronic Controller

Microprocessor Controller/

Motor

DC24V 100W Brushless Motor/ Dimensio

Safety Detection

Automatic stop/ reverse during opening or closing

Optional Devices

Microwave Sensor/ Keypad Systems/ batteries/ Functional Switch/ Remote Control/ Magnetic Lock etc.

Maximum Noise

Below 55dB

Railing Type

High Strength Aluminum Alloy Rail

Fixed Pulley

Hanging Wheel Sets/ Convenient Level Adjustment/ Automatic Alignment/ Easy Installation

Working Temperature

-25°C~+55°C

Specialty

1, C-type rail :can support more weight and combine with brush to resist dust and noise .

2, Powerful and special designed brush motor : slim and powerful ( up to 1350Ncm )

3, Powerful transformer with low size and lower work temperature

4, Self lubricate POM roller , wearable and noise free

5, One leaf are hanged by two runner ( total of 8 bearing rollers ) leaf weight distribute equably

6, Steel wired PU tooth belt : lower distortion , fit for hight speed run and stop .

7, Bi-stable lock :the two state ( lock/unlock) are hold even when power loss , in emergency situation

the lock can be unlocked by hand inside or by key switch outside (battery active when no main power )

8, Self-learning made install easy ! no other program device needed !

9, Pre-installed profile made it easy for install rail

10. Anti crash force are tunable

Components

1. Rail

9. Breaker

2. Transformer

3. Motor

11. Service cover holder

4. Tail wheel

12. End stop

5. Basic control module

13. Door bracket

6. Runner

14. Belt connection

7. NiHM battery

15. Belt tensioning device

8. Side panel

Optional equipment

Electro-mechanical lock(bistable)

Manual release of electro-mechanical lock

Light barriers

Backup battery pack

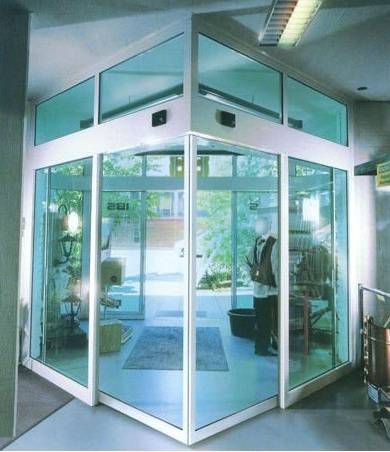

Automatic sliding door Photos

200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval

200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval

package photos

200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval

200KG Commercial Automatic Glass Sliding Doors with CE , TUV Approval
