Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Songqi
Model Number :
SQ400x
Certification :
ISO9001
Packaging Details :
Packaging film package and wooden binding
Supply Ability :
200 Set/Sets per Year
Price :
Negotiable
MOQ :
Negotiable
Payment Terms :
D/P, D/A, L/C, T/T
Delivery Time :
20-35days
Voltage :
110V/120V/127V/208V/220V /240V/380V/415V/460V
Power :
4KW
Dimension(L*W*H) :
L2500*W1300*H1900mm
Weight :
1000kg
Usage :
Operation by touch screen
Equipment Name :
Automatic reciprocating spraying machine
spray booth :
stainless steel spray curtain cabinet
Application :
spray Cup
Spray gun :
Japanese Iwata
pump :
American GRACO 308 diaphragm pump
Description

Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup

High quality 5 Axis Spray Painting Machine and Automatic spray paint machine for Cup

Product Application

With the process of society, munal spraying has failed to meet the needs of modern industry. So, it is necessary to use automatic spraying take place of manual spraying.

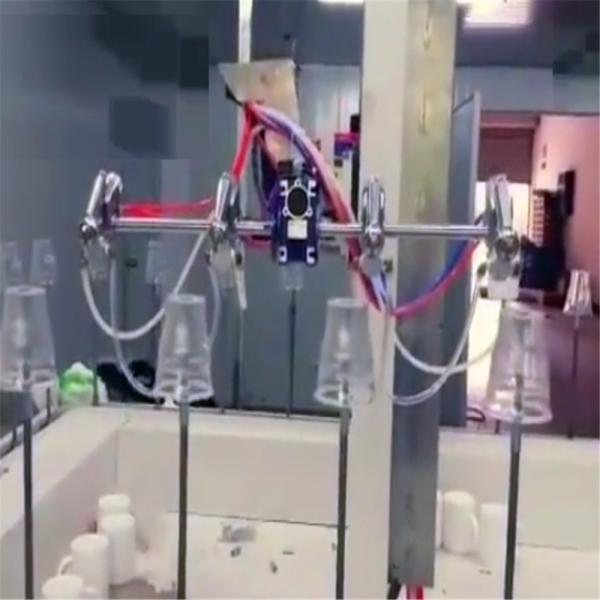

This spraying mchine is professional designed for cup and other round products. This is a reduced version of the painting line.The cup move to the spray zone after worker pulled it on the line, then the cup begin to Rotating automatically drived by the forced friction mechanism. The machine can spray from up to down ,left to right ,and the spray gun can automatically adjust the angle in the vertical direction.

The difference between automatic spraying and manual spraying(Normally)
Automatic spraying
Manual spraying
Spray gun
high atomization
Low atomization
Spraying quality
High
Low
Spraying speed
Fast
low
Paint needs
Less
more
Damage to the human body
Less
more
Working hours
24h
8h
managed cost
Less
more
Factory output
more
less
SPECIFICATIONS FOR SPRAYING MACHINE
Control system
1. Japanese OMRON PLC

2. Taiwan WEINTEK Color industrial touch screen

3. Schneider Electric switch and Power Supply

4. Japanese OMRON relay
Drive system
Japanese Panasonnic servo drive system
Transmission system
1. Aluminium profile module

2. Taiwan HIWIN Linear guide rail

3. Taiwan HIWIN Silent slide

4. Precision synchronous wheel

5. Italy Megadyne Synchronous belt with steel wire

6. positioning accuracy difference ±1mm
Product rotation platform
Continuous rotation
forced friction mechanism
Spray gun
1.Japanese ANEST IWATA
Paint supply system


1. Amercian GRACO 308 diaphragm pump

2. Pneumatic agitator produce from Taiwan,China

3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
Power supply
AC220V50HZ, Single phase three wire
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Certifications
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Detailed Images
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup

Machine Parts

Name: servo motor

Brand: Panasonnic

Original: Japanese

positioning accuracy ± 0.5mm

Main Features

Name: Linear guide rail and Silent slide
Brand: HIWIN
Original: Taiwan China
positioning accuracy ± 0.5mm

no noise

Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup

Machine Parts

Name: spray gun
Brand: IWATA
Original: Japanese
air spray gun

Main Features

Name: touch screen
Brand: WEINTEK
Original: Taiwan China
10 inch

Color industrial touch screen

Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Our Service
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
Fast Speed 460V 5 Axis Spray Painting Machine Servo Motor For Cup
